Smart Key Code Saving

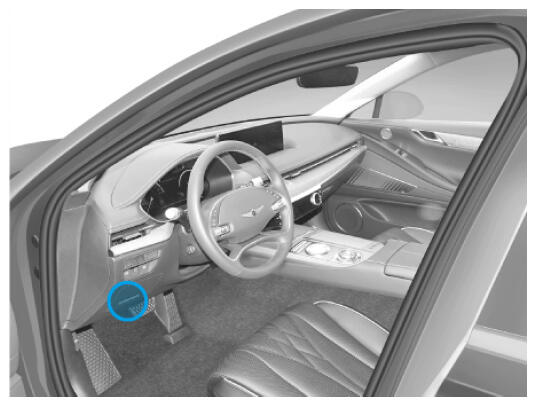

- Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.NOTE:

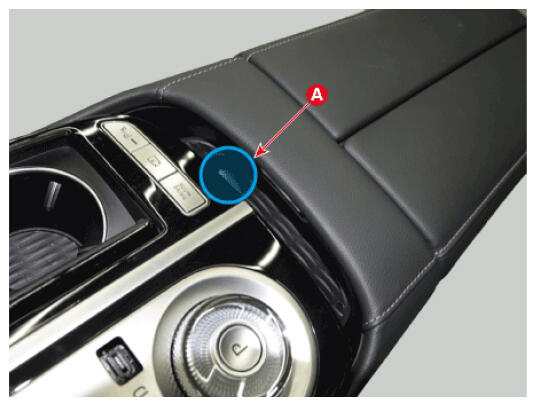

- When registering the smart key, place the smart key in the emergency start-up groove (A) of the floor console.

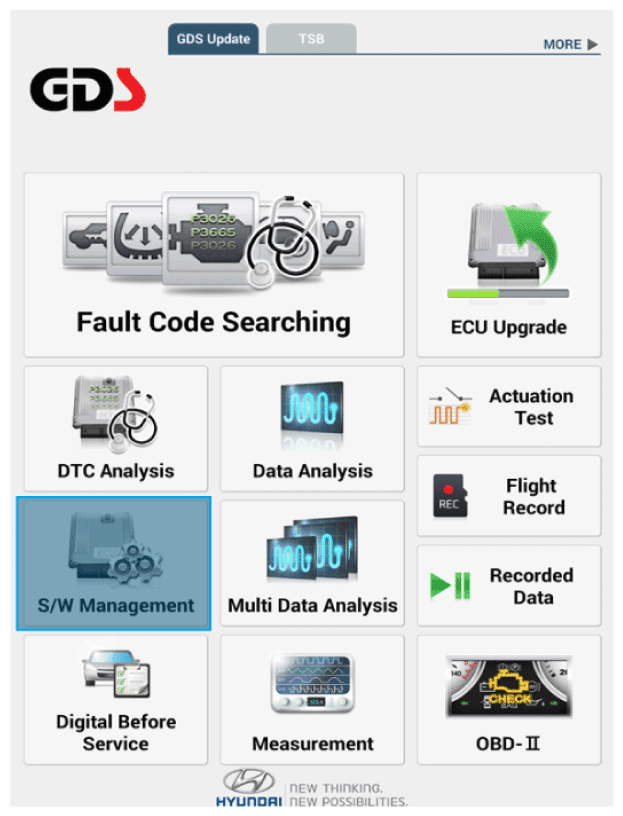

- "Select the 'S/W Management' and 'Car model'.

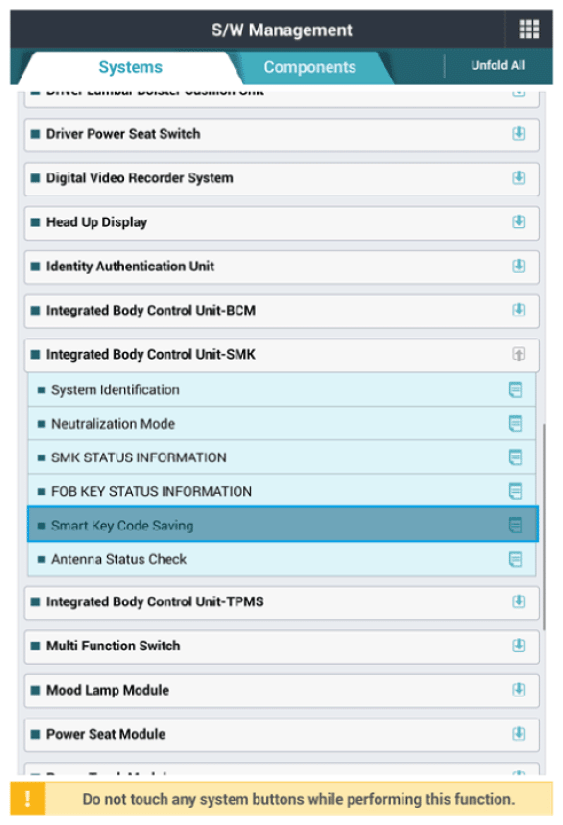

- Select the 'Integrated Body Control Unit-SMK' and 'Smart Key Code Saving'.

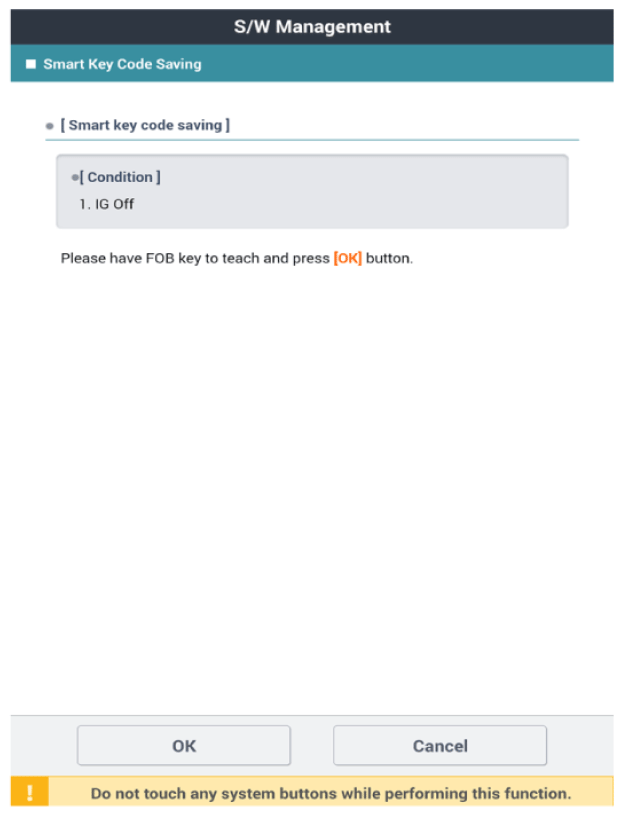

- Follow the instructions on the screen.
