Removal And Installation: Notes

  1. Disconnect the battery negative (-) terminal.

    (Refer to Vehicle Control System - "AUXILIARY 12V BATTERY ")

  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

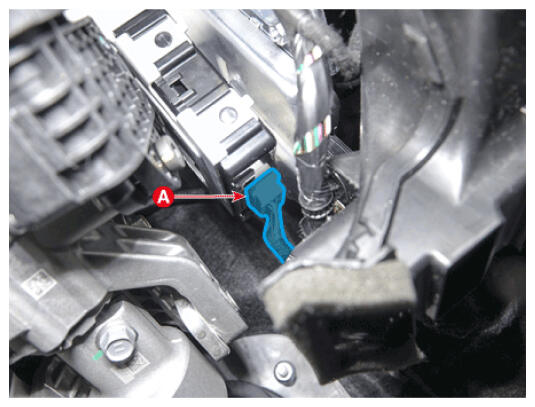

  3. Disconnect the steering column module connector (A).
    G16871335Courtesy of HYUNDAI MOTOR AMERICA

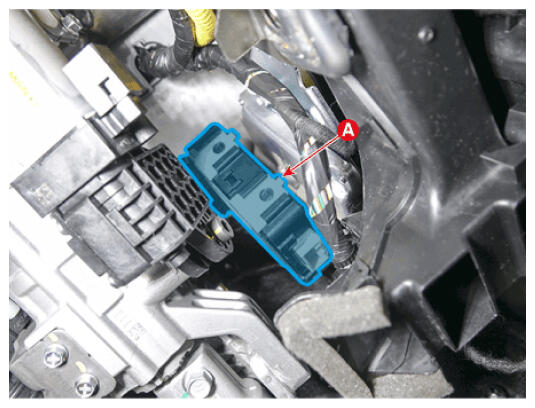

  4. Remove the steering column module (A) after loosening the mounting nuts.
    G16871336Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedures.
