Front View Camera Variant Coding

Information

• Front view camera variant coding makes it possible to operate functions for each vehicle type.
• If the variant coding differs from the vehicle specification, the "variant coding error" DTC is displayed.

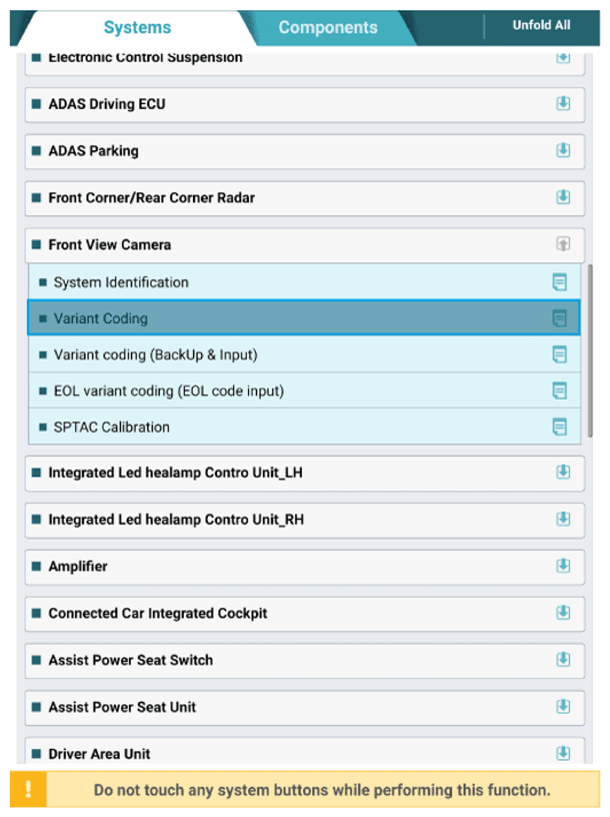

1. If the front view camera unit is replaced with a new one, perform the "Variant Coding" procedure using diagnostic tool.

   Courtesy of HYUNDAI MOTOR AMERICA

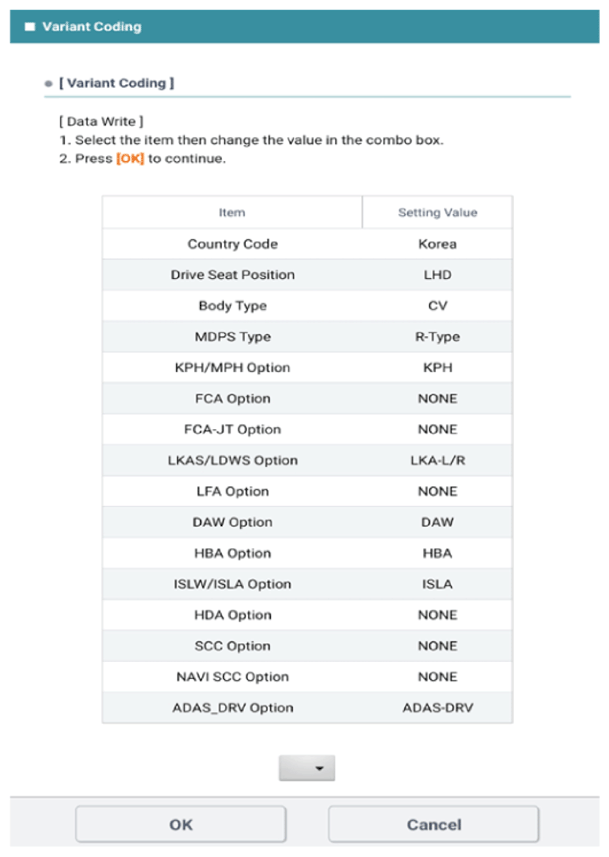

2. Enter the specification value read from the existing camera into the new front camera.

Courtesy of HYUNDAI MOTOR AMERICA
