Integrated Charging Control Unit Diagnosis
>>
DTC U0110-87: Lost Communication With Drive Motor Control Module
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

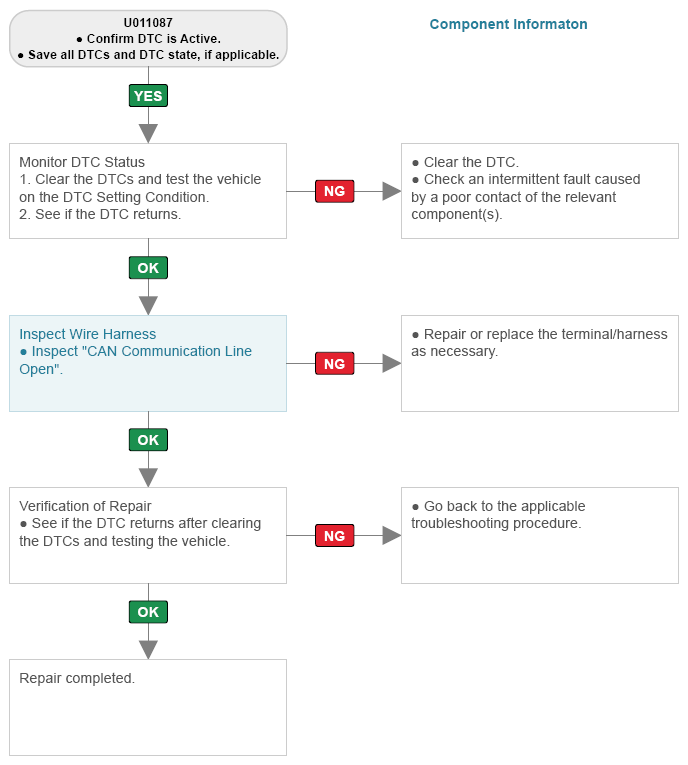

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
