IAU-FRU Learning Method

Learning between IAU-FPM is carried out to set up the fingerprint recognition system.

NOTE:

When learning IAU-FPM, the fingerprint recognition information previously stored in the vehicle is deleted.
Be sure to inform the customer that fingerprint re-registration is required.

Turn the power switch "OFF" and connect the diagnostic tool.
Turn the power switch "ON" and the motor "OFF".

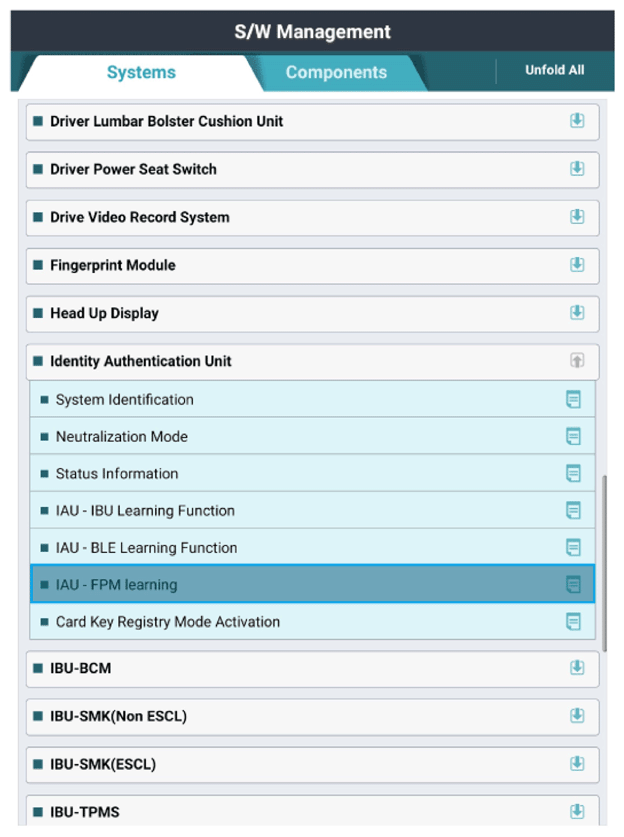

Select the 'S/W Management' and 'IAU-FPM Learning'.

Courtesy of HYUNDAI MOTOR AMERICA
Select IAU-FPM learning and perform the procedure according to the required conditions.
