Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

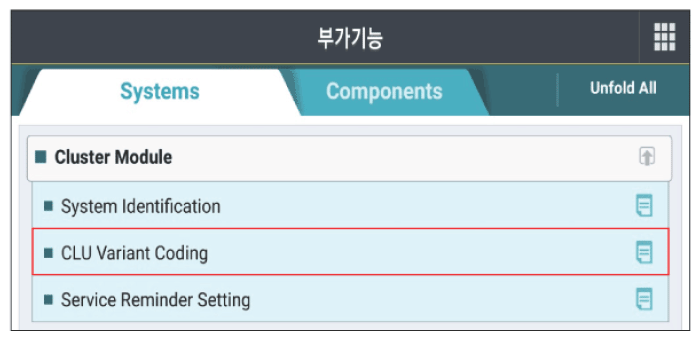

G16822631Courtesy of HYUNDAI MOTOR AMERICA

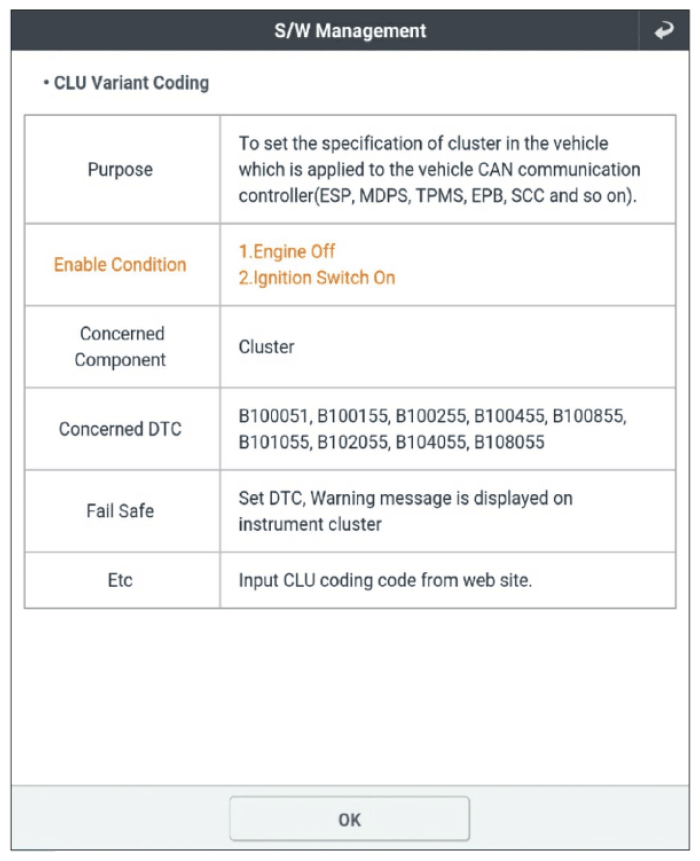

G16822632Courtesy of HYUNDAI MOTOR AMERICA
G16822633Courtesy of HYUNDAI MOTOR AMERICA

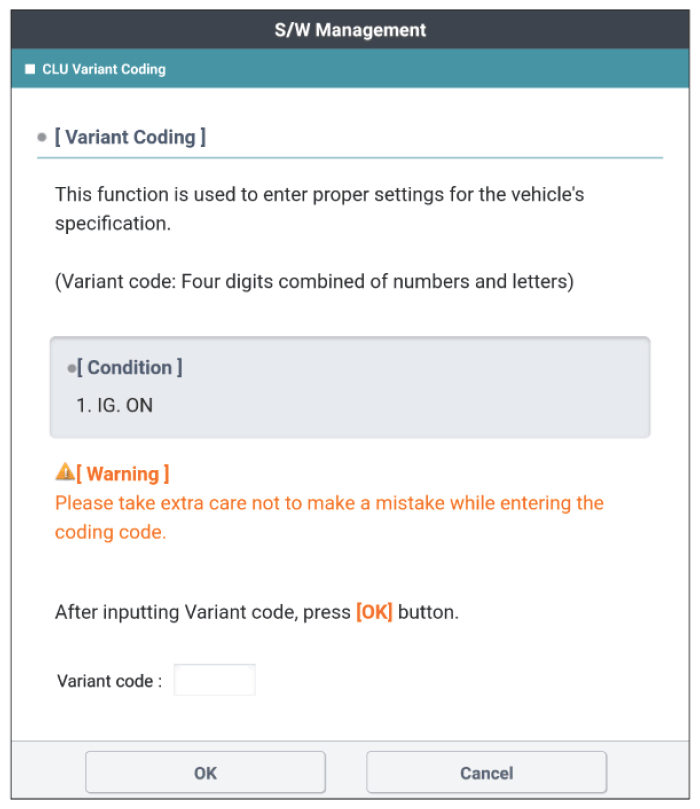

G16822634Courtesy of HYUNDAI MOTOR AMERICA

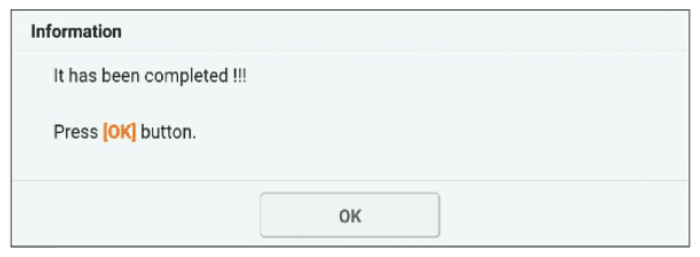

G16822635Courtesy of HYUNDAI MOTOR AMERICA
