Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

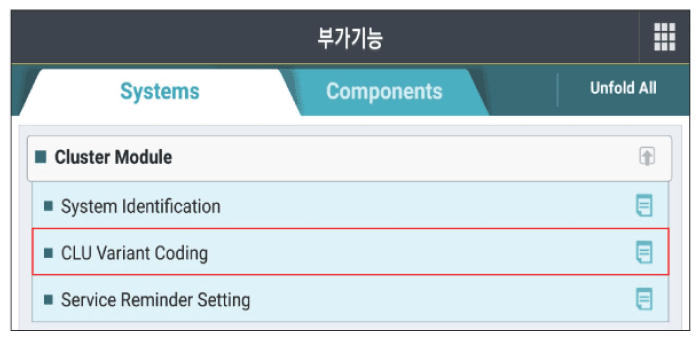

G16822703Courtesy of HYUNDAI MOTOR AMERICA

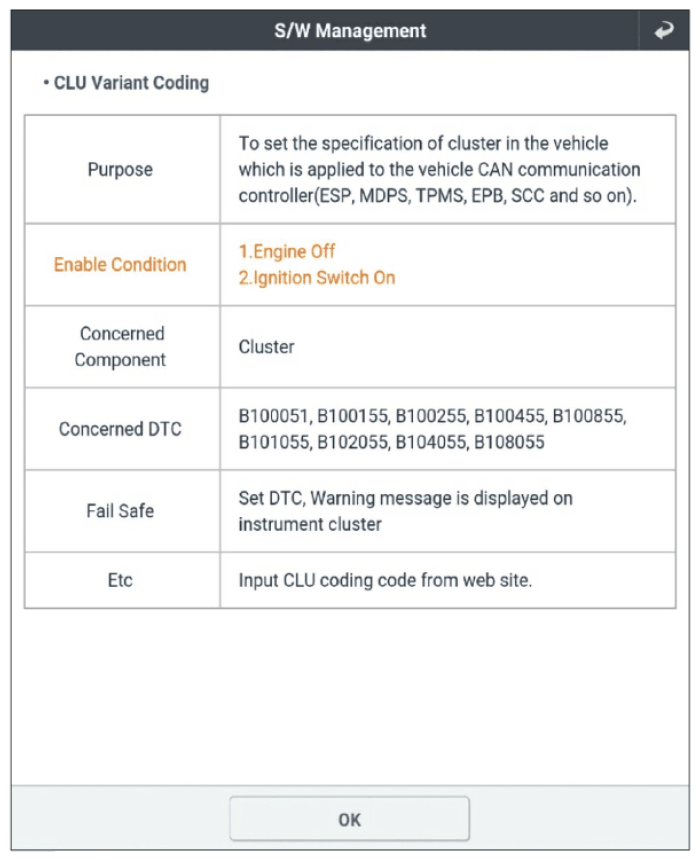

G16822704Courtesy of HYUNDAI MOTOR AMERICA

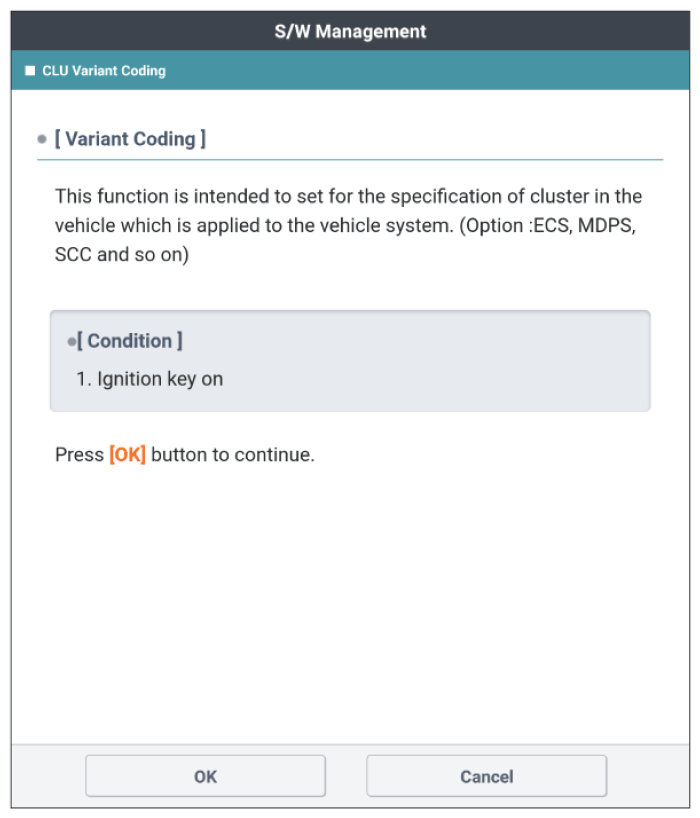

G16822705Courtesy of HYUNDAI MOTOR AMERICA

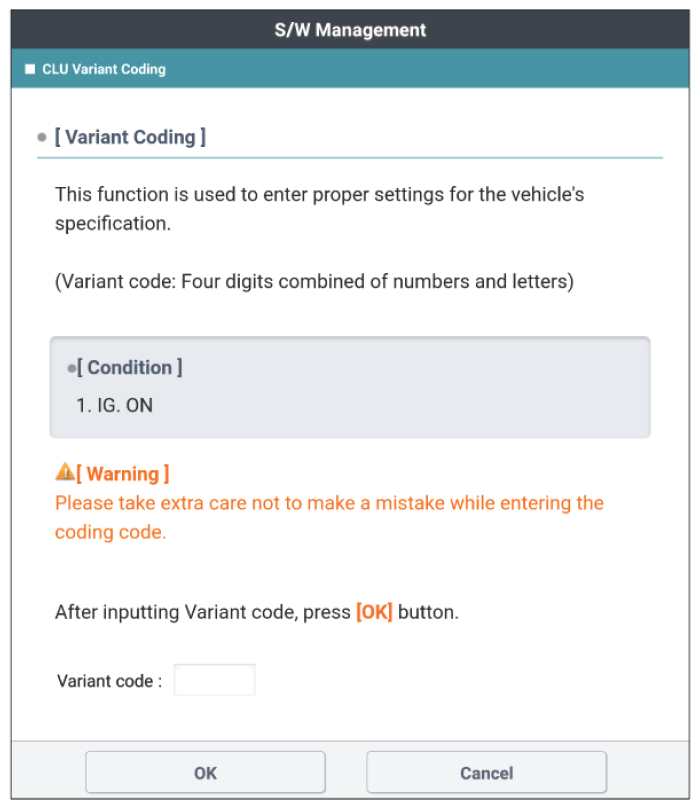

G16822706Courtesy of HYUNDAI MOTOR AMERICA

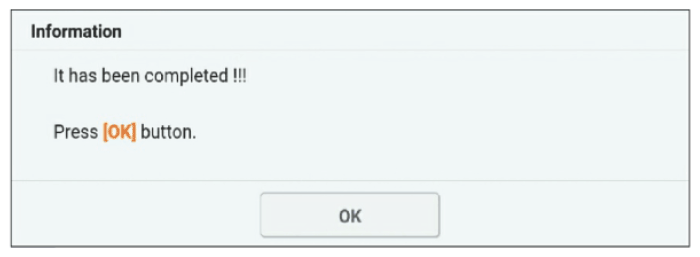

G16822707Courtesy of HYUNDAI MOTOR AMERICA
