Variant Coding

  1. Ignition switch OFF, connect GDS.

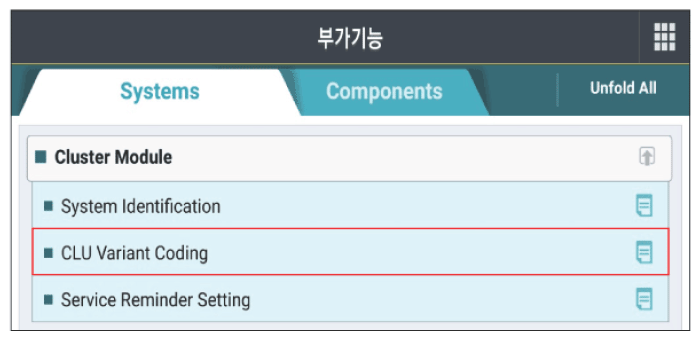

  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".
G16822751Courtesy of HYUNDAI MOTOR AMERICA

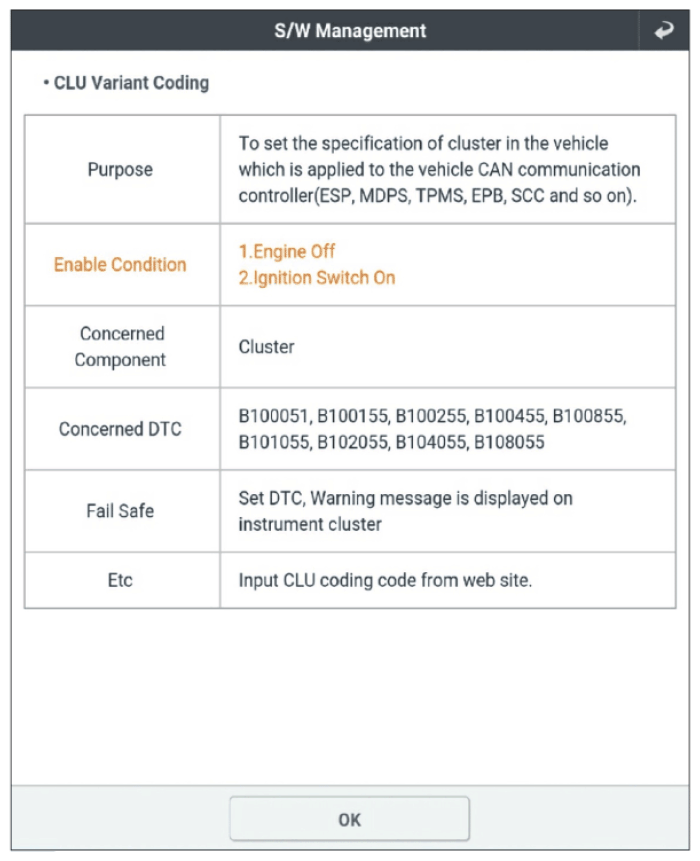

G16822752Courtesy of HYUNDAI MOTOR AMERICA
G16822753Courtesy of HYUNDAI MOTOR AMERICA

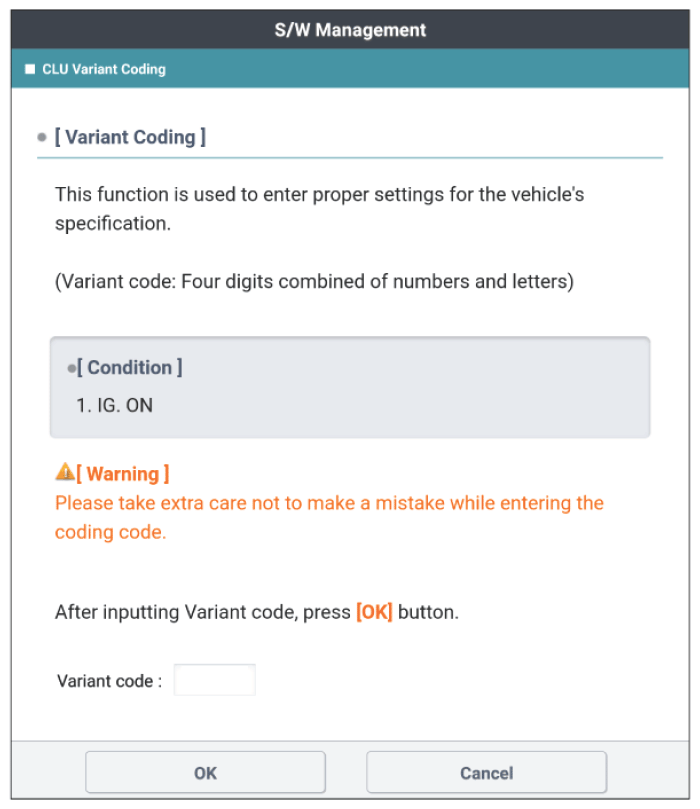

G16822754Courtesy of HYUNDAI MOTOR AMERICA

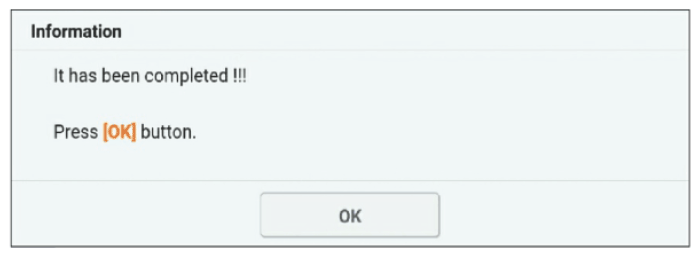

G16822755Courtesy of HYUNDAI MOTOR AMERICA
