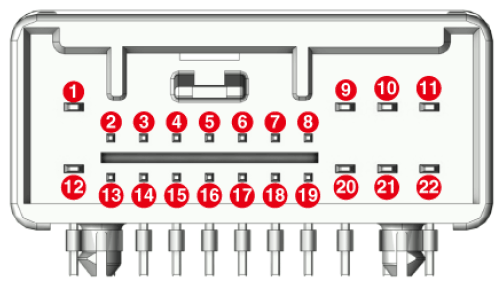

Steering Column Module (SCM)

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Function
1	BATTERY (+)
2	TILT SENSOR INPUT
3	TELE SENSOR INPUT
4	-
5	-
6	B_CAN High
7	B_CAN Low
8	-
9	TILT MOTOR UP OUTPUT
10	BATTERY (+) POWER
11	TILT MOTOR DOWN OUTPUT
12	IGN1
13	POSITION SENSOR POWER OUTPUT
14	-
15	SCM SWITCH INPUT
16	-
17	-
18	SCM SWITCH GROUND
19	GROUND
20	GROUND POWER
21	TELE MOTOR FORWARD OUTPUT
22	TELE MOTOR BACKWARD OUTPUT
