Variant Coding

  1. Ignition switch OFF, connect GDS.

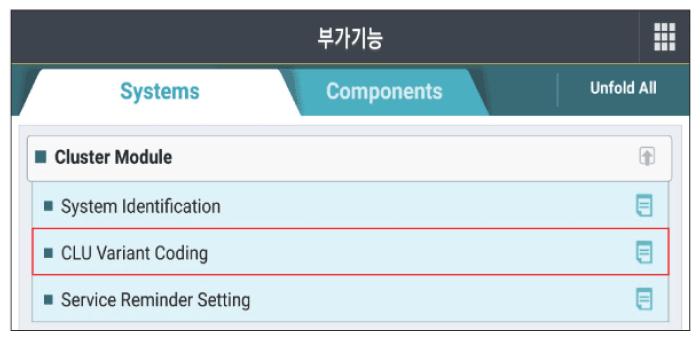

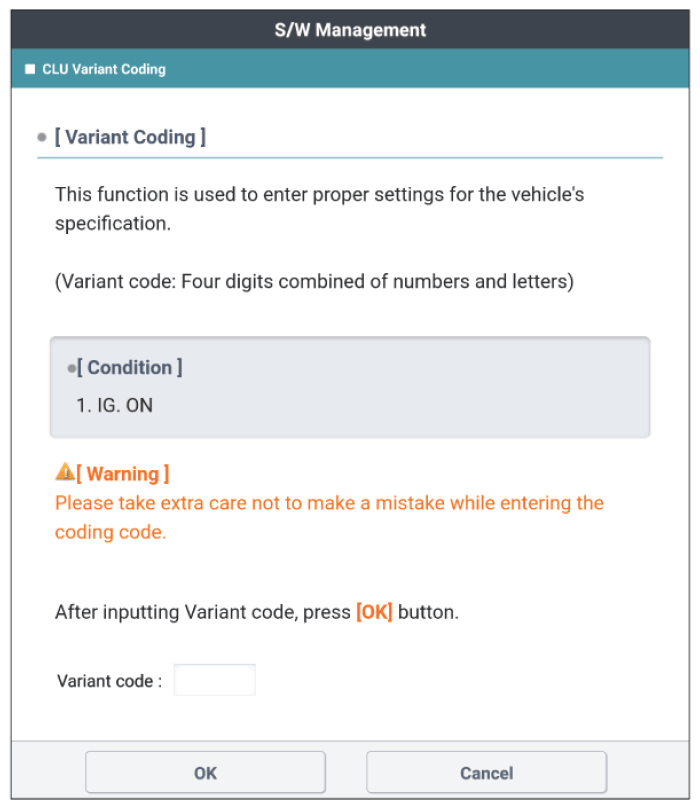

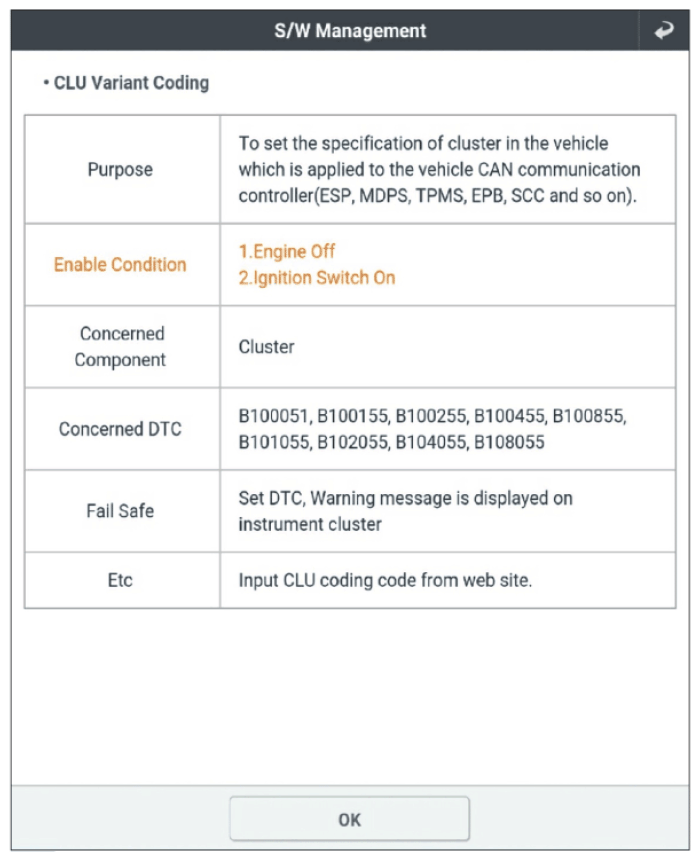

  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".
G16822691Courtesy of HYUNDAI MOTOR AMERICA
G16822692Courtesy of HYUNDAI MOTOR AMERICA
G16822693Courtesy of HYUNDAI MOTOR AMERICA
G16822694Courtesy of HYUNDAI MOTOR AMERICA
G16822695Courtesy of HYUNDAI MOTOR AMERICA
