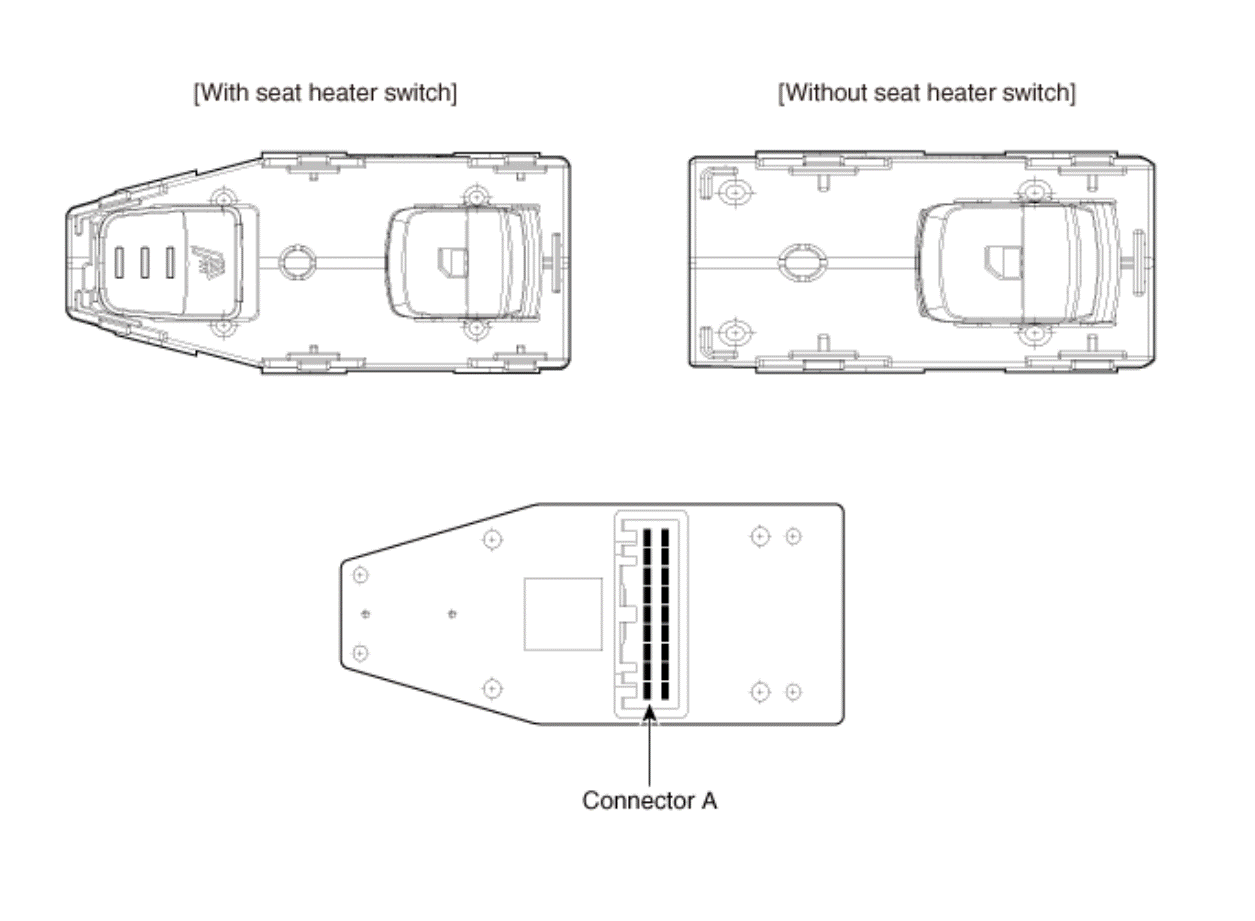

Rear power window switch

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Manual power window + Seal healer		Manual power window switch
Connector A	Pin	Description	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA Connector A	1	Ground	1	-
	2	-	2	Ground
	3	Power window motor (Down)	3	Power window motor (Down)
	4	Seal neater switch output	4	-
	5	Power window motor (Up)	S	Power window motor (Up)
	6	Seat heater (Heater) output	6	-
Connector A	7	Battery (+)	7	Power window motor (Down) driver switch input signal
Courtesy of HYUNDAI MOTOR AMERICA	8	Seat heater (Mid) output	6	Enable/Window lock
	9	Seat heater (Low) output	9	Ground
	10	Ground	10	Power window motor (Up) driver switch input signal
	11		11	Tail lamp
	12	Tail lamp	12	Battery (+)
	13	-
	14	-
	15	Power window motor (Up) driver switch input signal
	16	Power window motor (Down) driver switch input signal
	17	Enable/Window lock
	18	-

Connector A	Safety power window + Seat heater		Safety power window
Connector A	Pin	Description	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ground	1	Ground
	2	Power window switch (High) input	2	-
	3	Power window switch (Low) input	3	-
	4	Tail lamp	4	Tail lamp
	5	Ground	5	Ground
	6	Power window switch (Mid) input	6	-
	7	Safety window output	7	Safety window output
	9	Seat healer switch output	8	-
