Repair Procedures: Removal

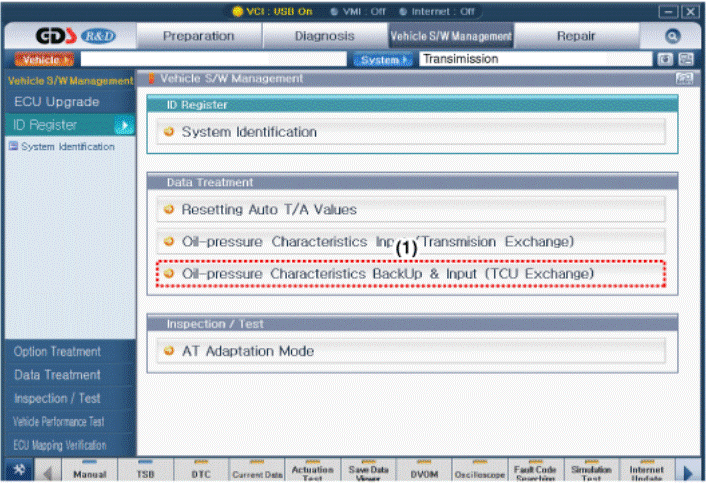

  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

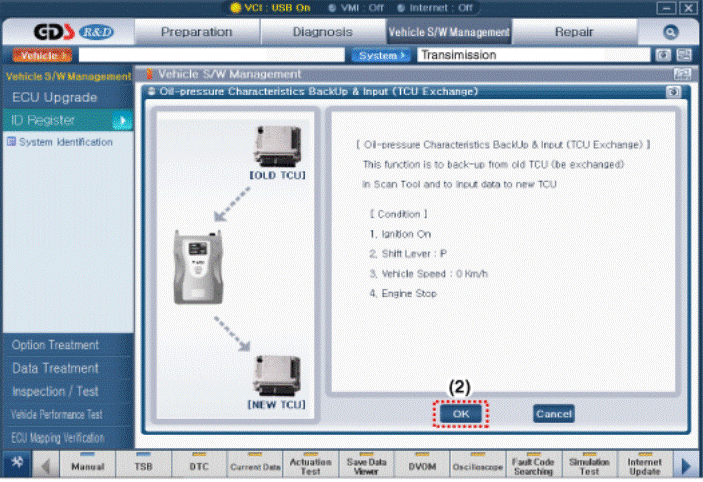

    G15591974Courtesy of HYUNDAI MOTOR AMERICA

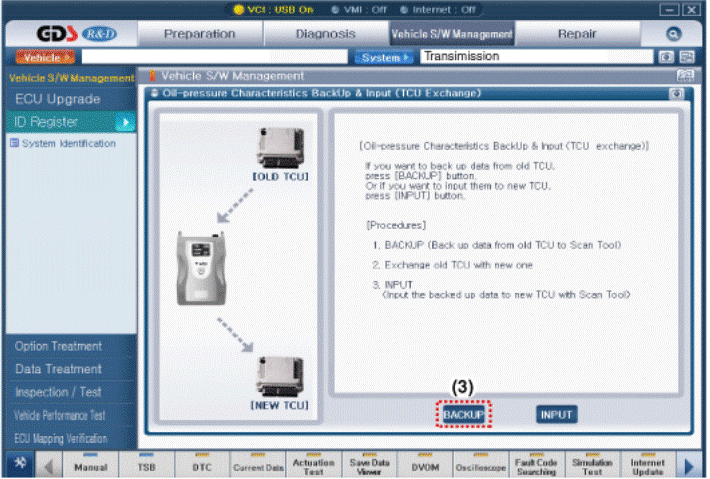

    G15591975Courtesy of HYUNDAI MOTOR AMERICA

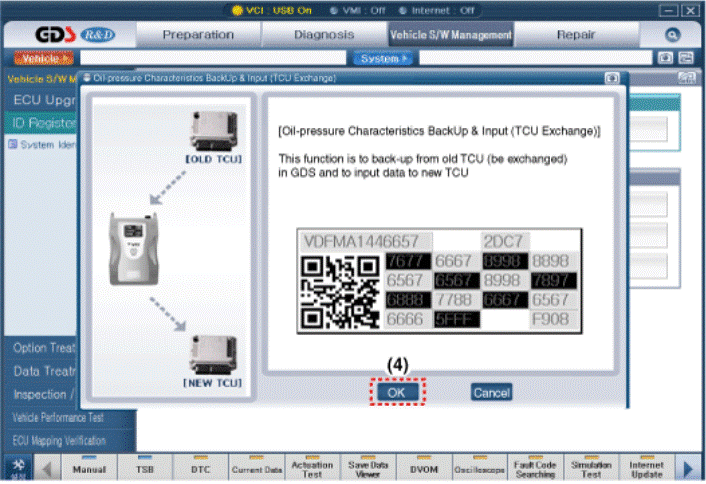

    G15591976Courtesy of HYUNDAI MOTOR AMERICA
    G15591977Courtesy of HYUNDAI MOTOR AMERICA

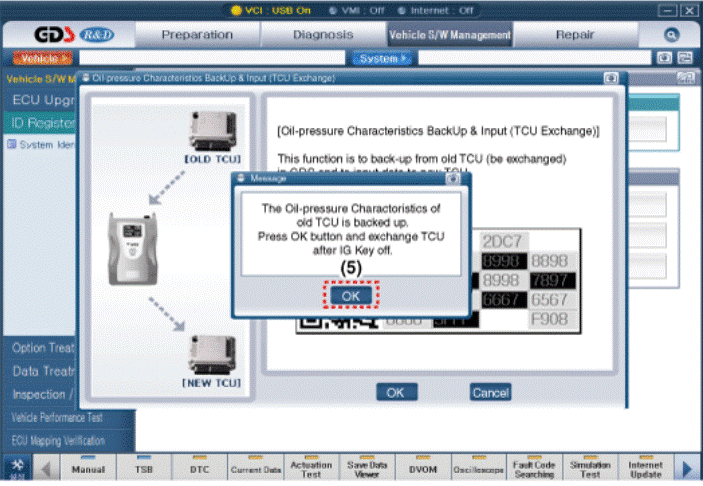

    G15591978Courtesy of HYUNDAI MOTOR AMERICA

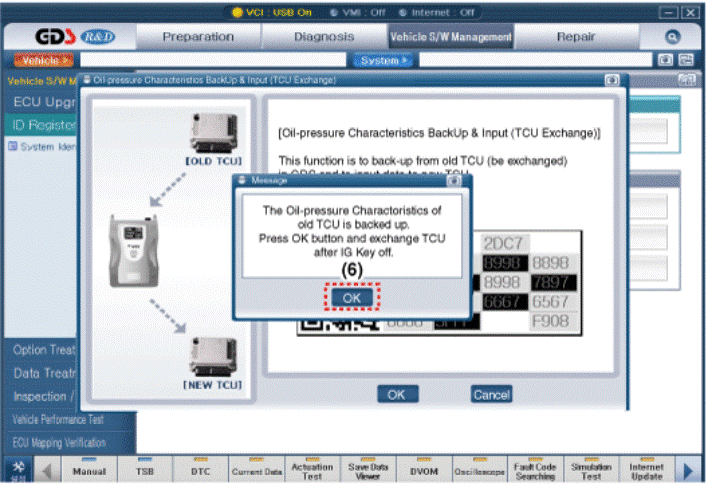

    G15591979Courtesy of HYUNDAI MOTOR AMERICA

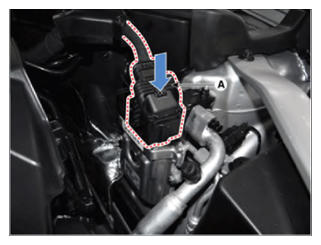

  2. Disconnect the TCM connector (A).
    G15591980Courtesy of HYUNDAI MOTOR AMERICA

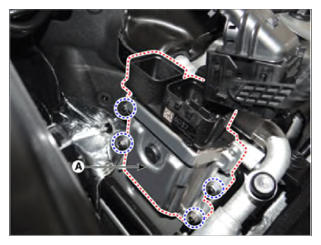

  3. Remove the TCM (A) after loosening the nuts.
G15591981Courtesy of HYUNDAI MOTOR AMERICA
