Diagnostic Flowchart

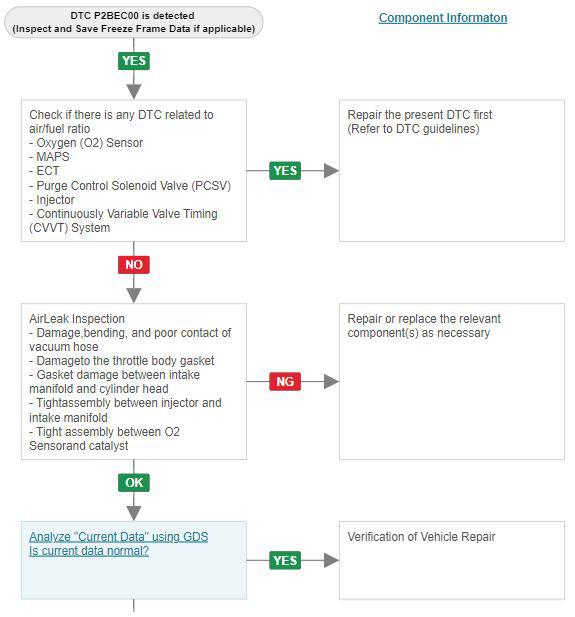

Fig 1: 1 Of 3
G14737293Courtesy of HYUNDAI MOTOR AMERICA

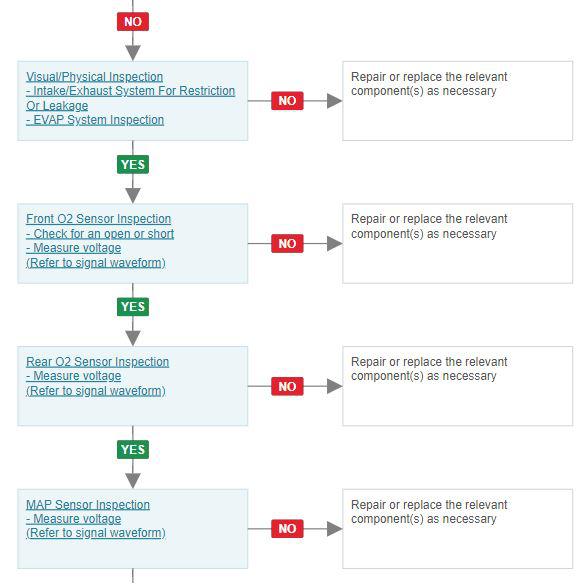

Fig 2: 2 Of 3
G00620456Courtesy of HYUNDAI MOTOR AMERICA

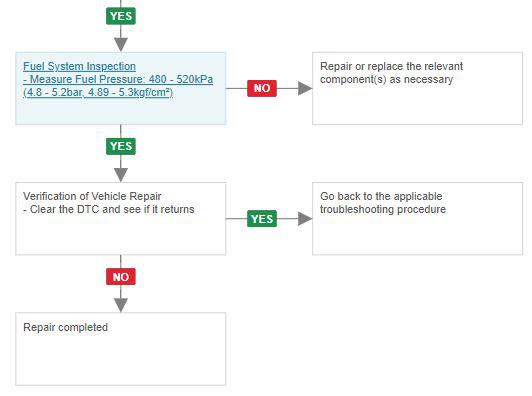

Fig 3: 3 Of 3
G00620457Courtesy of HYUNDAI MOTOR AMERICA
