Disassembly And Reassembly

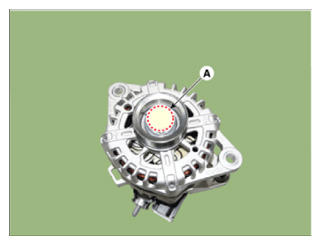

Remove the shaft cap (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with new shaft cap.

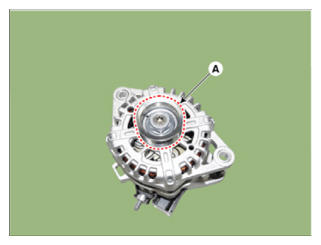

Remove the alternator pulley (A).

Courtesy of HYUNDAI MOTOR AMERICA

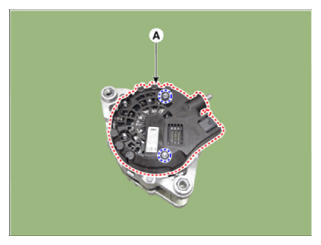

Remove the alternator rear cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

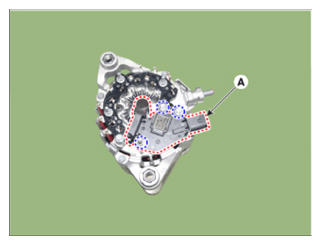

Remove the regulator assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

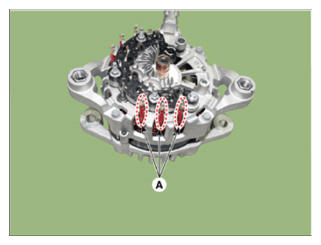

Unsolder the stator leads (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

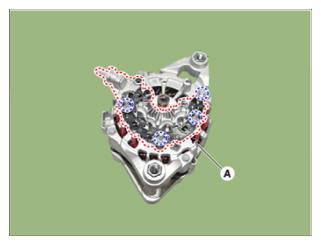

Remove the rectifier assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

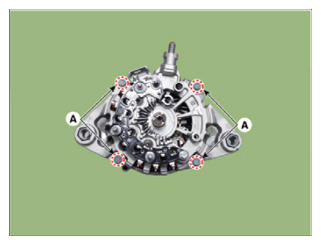

Remove the 4 through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

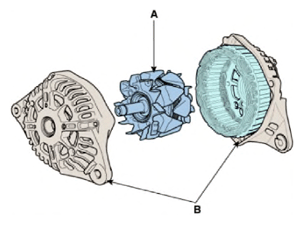

Separate the rotor (A) and cover (B).

Courtesy of HYUNDAI MOTOR AMERICA
Reassemble in the reverse order of disassembly.
NOTE:
- When installing, replace with new shaft cap.
