Genesis
>>
2023
>>
GV70 2.5T Advanced
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.5L (1 Of 6)
>>
DTC P0107-00: Manifold Absolute Pressure/Barometric Pressure Circuit Low Input
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

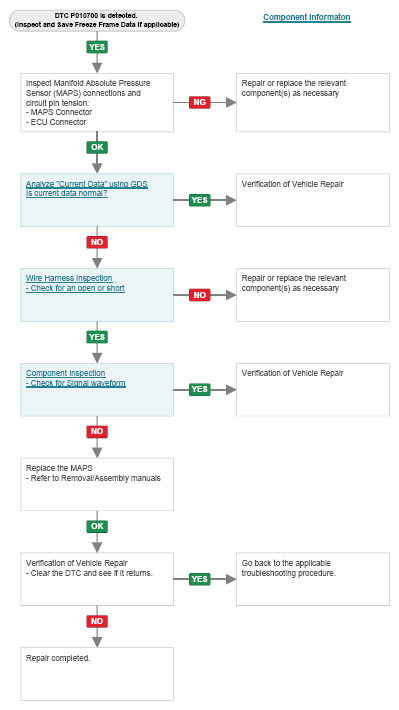

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
