Automatic Transmission System: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the engine and transmission assembly. (Refer to Engine Mechanical System - "ENGINE AND TRANSAXLE ASSEMBLY ")

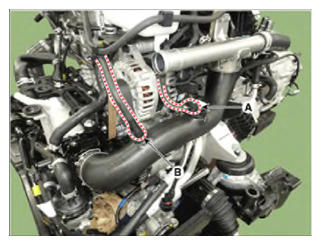

  3. Disconnect the boost pressure sensor connector (A) and vacuum hose connector (B).
    G14764064Courtesy of HYUNDAI MOTOR AMERICA

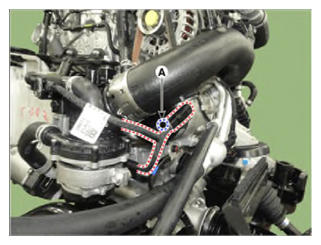

  4. Separate the connector wiring (A).
    G14764065Courtesy of HYUNDAI MOTOR AMERICA

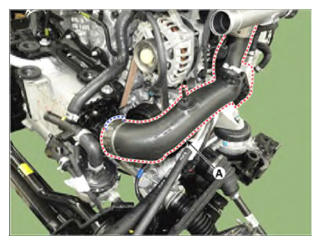

  5. Separate the intercooler outlet hose (A).
    G14764066Courtesy of HYUNDAI MOTOR AMERICA

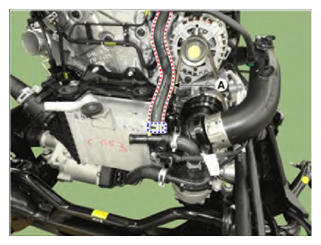

  6. Separate the EWP water hose (A).
    G14764067Courtesy of HYUNDAI MOTOR AMERICA

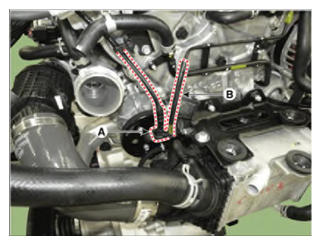

  7. Separate the RCV solenoid connector (A) and hose (B).
    G14764068Courtesy of HYUNDAI MOTOR AMERICA

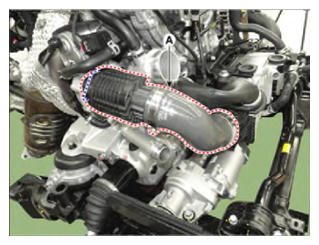

  8. Separate the intercooler inlet hose (A).
    G14764069Courtesy of HYUNDAI MOTOR AMERICA

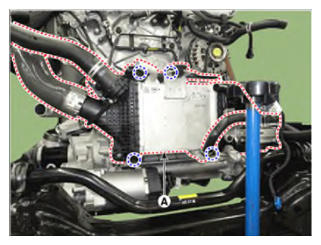

  9. Loosen the bolts and then removing the water cooled Intercooler (A).
    G14764070Courtesy of HYUNDAI MOTOR AMERICA

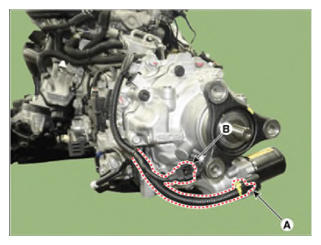

  10. Disconnect the hydraulic motor connector (A) and pressure sensor connector (B).
    G14764071Courtesy of HYUNDAI MOTOR AMERICA

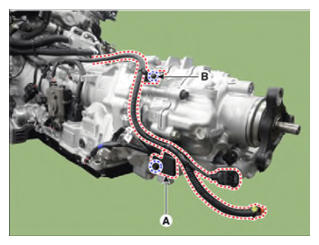

  11. Loosen the bolts and then separate the wiring bracket (A, B).
    G14764072Courtesy of HYUNDAI MOTOR AMERICA

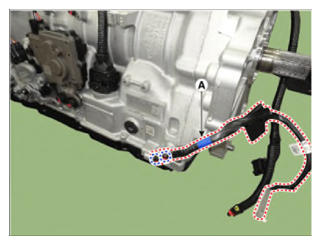

  12. Loosen the bolts and then removing the ground line (A).
    G14764073Courtesy of HYUNDAI MOTOR AMERICA

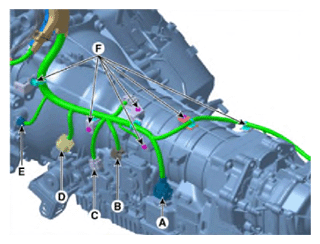

  13. Remove the items below.
    1. Main connector
    2. Parking release actuator connector
    3. Position sensor connector
    4. Electronic Oil Pump (EOP) connector
    5. Crank Position Sensor (CKPS) connector
    6. Ground line and wiring bracketing
    G14764074Courtesy of HYUNDAI MOTOR AMERICA

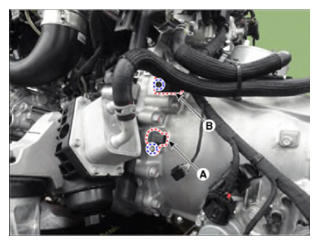

  14. Loosen the bolts and then removing the CKP sensor (A) and wiring bracket (B).
    G14764075Courtesy of HYUNDAI MOTOR AMERICA

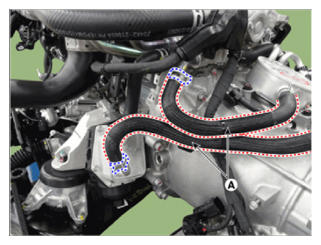

  15. Separate the cooling hose (A).
    G14764076Courtesy of HYUNDAI MOTOR AMERICA

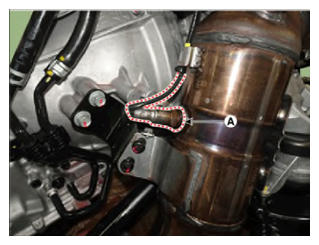

  16. Separate the HO2 sensor (A).
    G14764077Courtesy of HYUNDAI MOTOR AMERICA

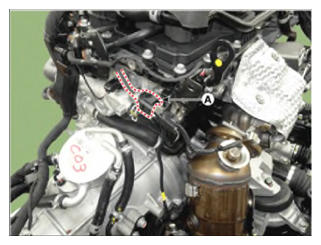

  17. Disconnect the HO2 sensor connector (A).
    G14764078Courtesy of HYUNDAI MOTOR AMERICA

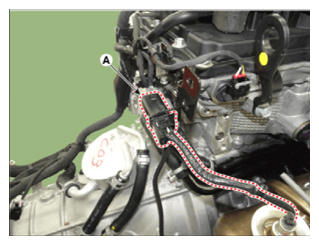

  18. Separate the HO2 sensor connector (A) from bracket.
    G14764079Courtesy of HYUNDAI MOTOR AMERICA

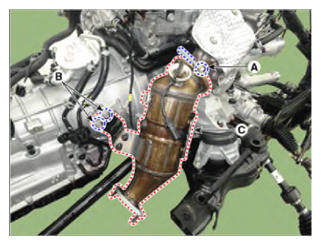

  19. Loosen the clamp (A) and bolts (B) and then removing the warmer catalytic converter (C).
    G14764080Courtesy of HYUNDAI MOTOR AMERICA

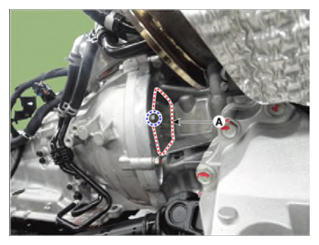

  20. Loosen the bolt and then removing the dust cover (A).
    G14764081Courtesy of HYUNDAI MOTOR AMERICA

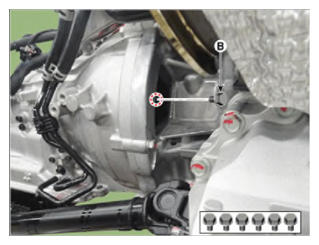

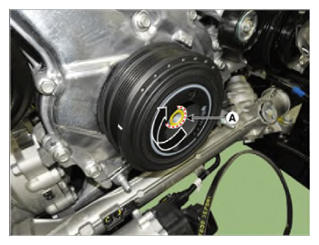

  21. Loosen the torque converter mounting bolts (B) by rotating the crankshaft (A).
    G14764082Courtesy of HYUNDAI MOTOR AMERICA
    G14764083Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, apply the ATF to the bolts thread before tightening the bolts.
    • When installing, lightly tighten the bolts (6-ea) and then tighten the bolts to the specified torque.

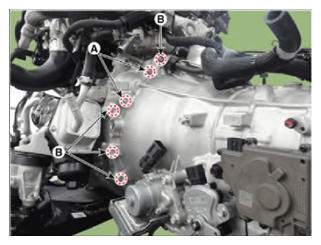

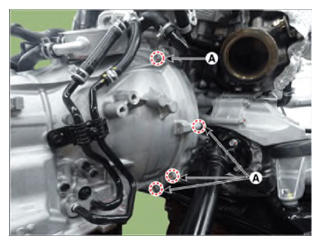

  22. Loosen the starter mounting bolts (A) and the transmission mounting bolts (B).

    Tightening torque:

    1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
    2. 78.5 - 98.1 N.m (4.3 - 5.5 kgf.m, 57.9 - 72.3 lb-ft)
    G14764084Courtesy of HYUNDAI MOTOR AMERICA
    G14764085Courtesy of HYUNDAI MOTOR AMERICA

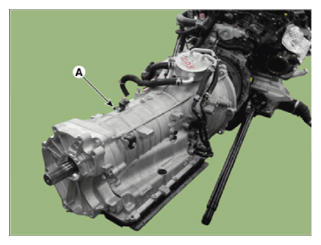

  23. After separating the transmission from the engine, remove the transmission (A) by lowering the jack slowly.
    G14764086Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful not to damage other nearby wiring or parts when removing the transmission assembly.
