Components And Components Location: Components

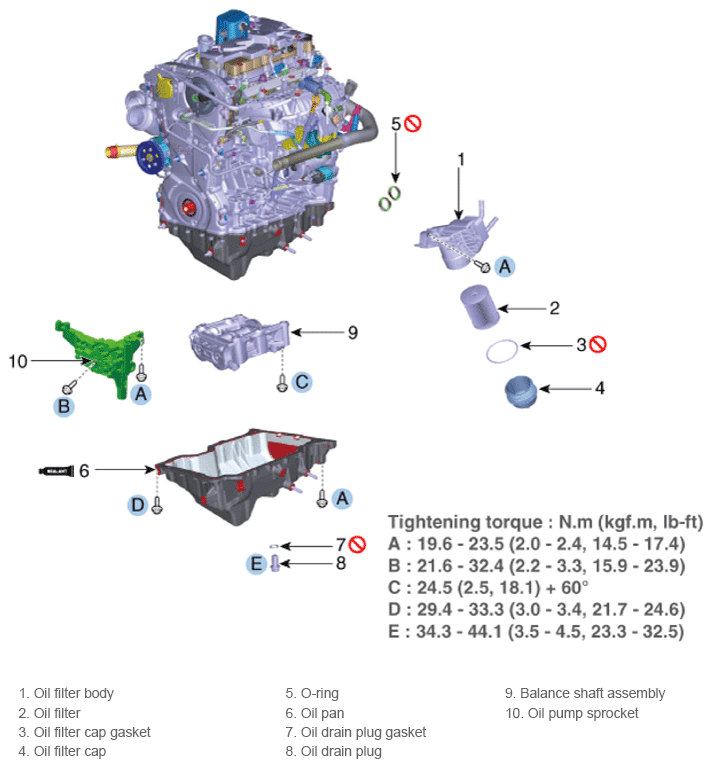

Fig 1: Lubrication System Components Location With Torque Specifications
G14752735Courtesy of HYUNDAI MOTOR AMERICA
