Removal And Installation
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the luggage side trim [RH].
(Refer to Body (Interior and Exterior) - "LUGGAGE SIDE TRIM ")

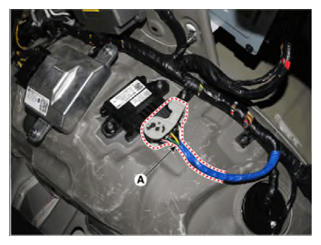

- Disconnect the fuel pump control module connector (A).

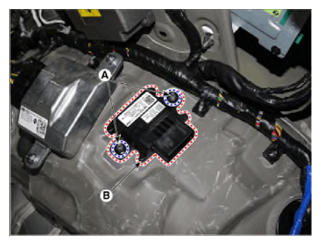

- After loosening the mounting nuts (A), then remove the fuel pump control module (B). Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
- Install in the reverse order of removal.
