Disassembly And Reassembly

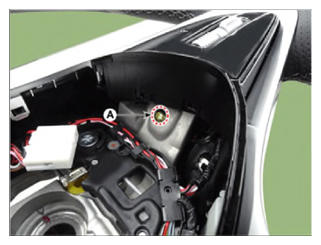

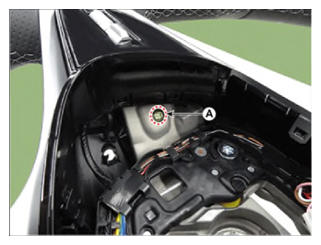

  1. Loosen the paddle shift switch mounting screws (A).
    G14753697Courtesy of HYUNDAI MOTOR AMERICA
    G14753698Courtesy of HYUNDAI MOTOR AMERICA

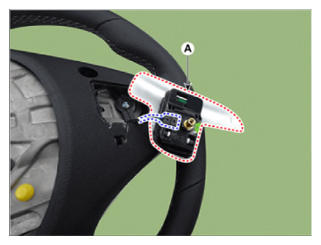

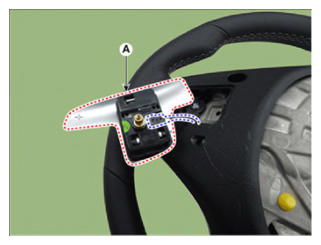

  2. Remove the paddle shift switch (A) after disconnecting the connector.
    G14753699Courtesy of HYUNDAI MOTOR AMERICA
    G14753700Courtesy of HYUNDAI MOTOR AMERICA

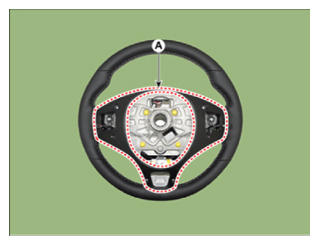

  3. Remove the lower cover (A) after loosening the screws.
    G14753701Courtesy of HYUNDAI MOTOR AMERICA

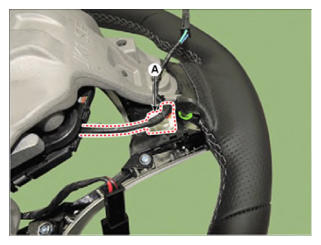

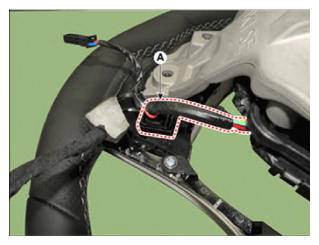

  4. Disconnect the remote control switch connector (A).
    G14753702Courtesy of HYUNDAI MOTOR AMERICA
    G14753703Courtesy of HYUNDAI MOTOR AMERICA

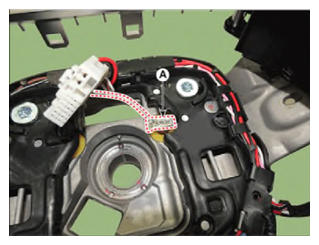

  5. Disconnect the ground connector (A).
    G14753704Courtesy of HYUNDAI MOTOR AMERICA

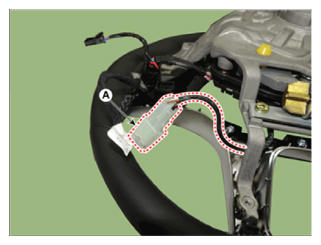

  6. Disconnect the heated steering wheel connector (A).
    G14753705Courtesy of HYUNDAI MOTOR AMERICA

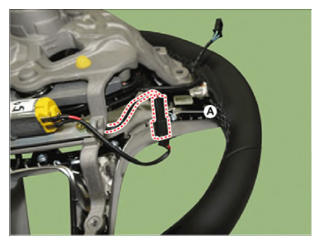

  7. Disconnect the haptic motor connector (A).
    G14753706Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the remote control switch bezel (A).
    G14753707Courtesy of HYUNDAI MOTOR AMERICA

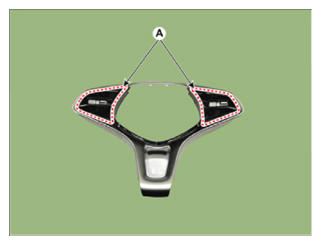

  9. Remove the remote control switch (A).
    G14753708Courtesy of HYUNDAI MOTOR AMERICA

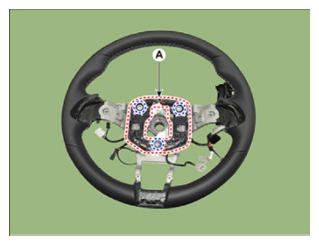

  10. Remove the horn plate & wiring harness (A) after loosening the screws.
    G14753709Courtesy of HYUNDAI MOTOR AMERICA

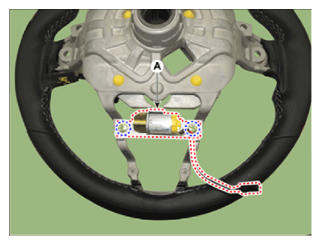

  11. Remove the haptic motor (A) after loosening the screws.
    G14753710Courtesy of HYUNDAI MOTOR AMERICA
  12. To reassembly, reverse the disassembly procedures.
