Transmission Control Module (TCM): Installation
- To install, reverse the removal procedures.

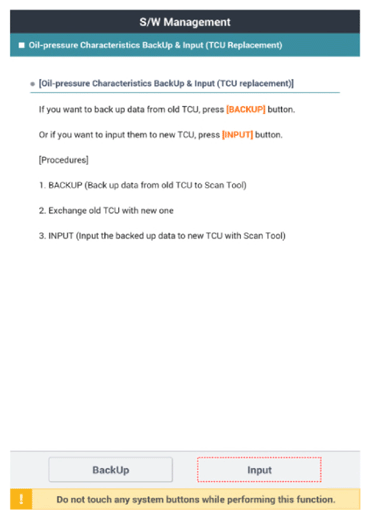

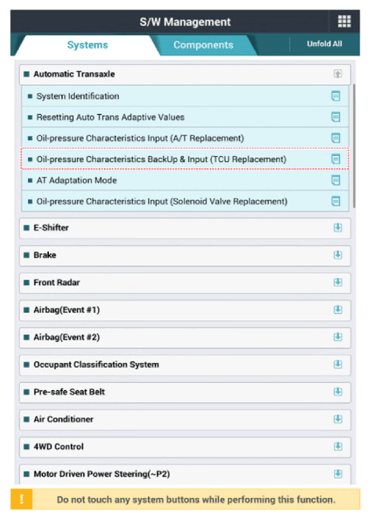

- Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.
- In order to avoid any problem including sense of starting delay of the transmission and shock at acceleration and vehicle start, make sure to process learning for TCM after replacing the transmission/TCM.
(Refer to Automatic Transmission Control System - "ADJUSTMENT ")
CAUTION:- After inspecting and replacing the oil level, make sure to remove all the transmission oil in the outside of the automatic transmission (In particular, remove the residual transmission oil between the transmission case and oil pan). Sure to remove the transmission oil of the automatic transmission's outside.
