Transmission Control Module (TCM): Removal

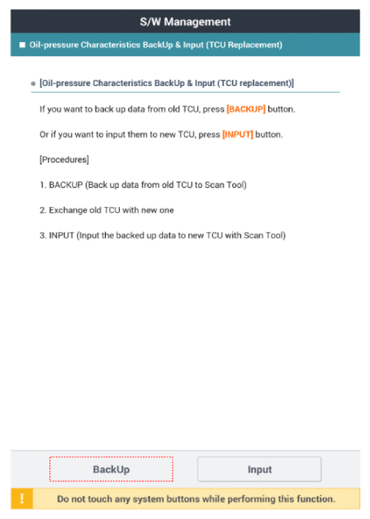

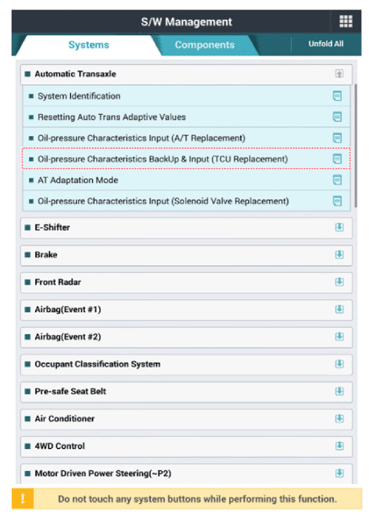

- Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.

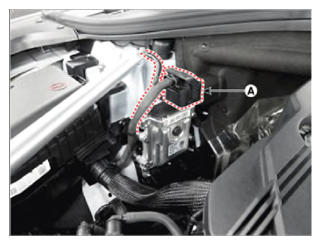

- Disconnect the TCM connector (A).

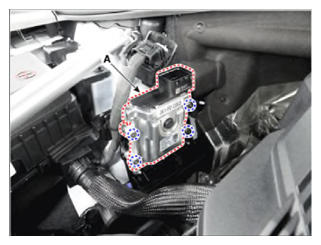

- Loosen the nuts and then removing the TCM (A).
Tightening torque:
8.83 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.51 - 8.68 lb-ft)
