Components & Components Location: Components

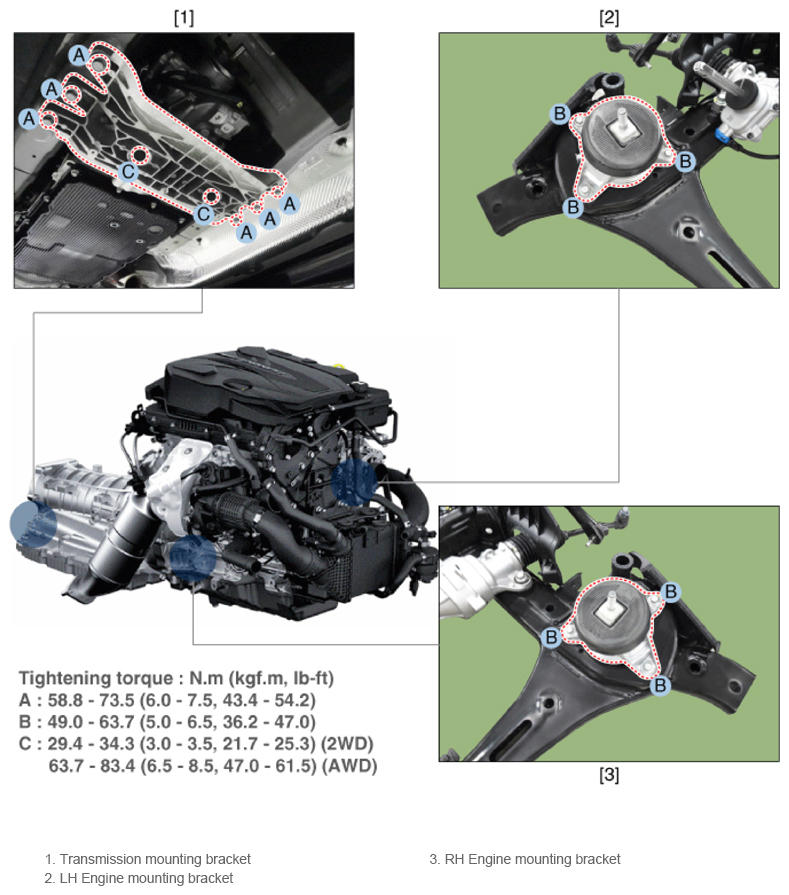

Fig 1: Engine Mounting Components Location With Torque Specifications
G14752429Courtesy of HYUNDAI MOTOR AMERICA
