Components And Components Location: Component

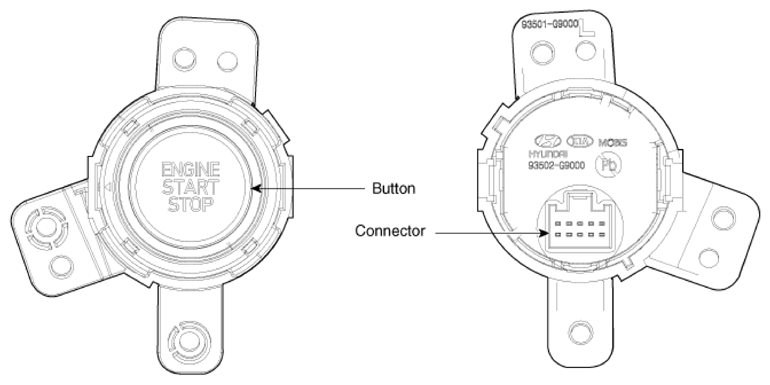

G16832747Courtesy of HYUNDAI MOTOR AMERICA
G16832748Courtesy of HYUNDAI MOTOR AMERICA
PIN Description
1 SSB switch 1 _output
2 -
3 SSB Illumination (+)
4 Immobilizer power
5 -
6 Ground
7 SSB switch 2_output
8 Rheostat input
9 SSB ring illumination
10 Immobilizer ground
