Components Location

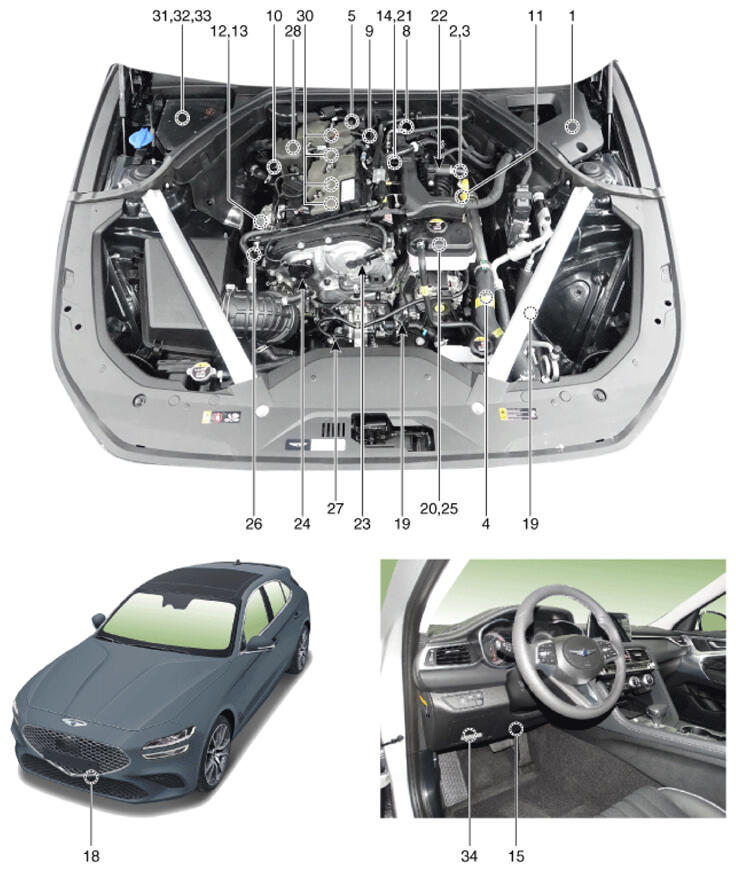

G16829910Courtesy of HYUNDAI MOTOR AMERICA

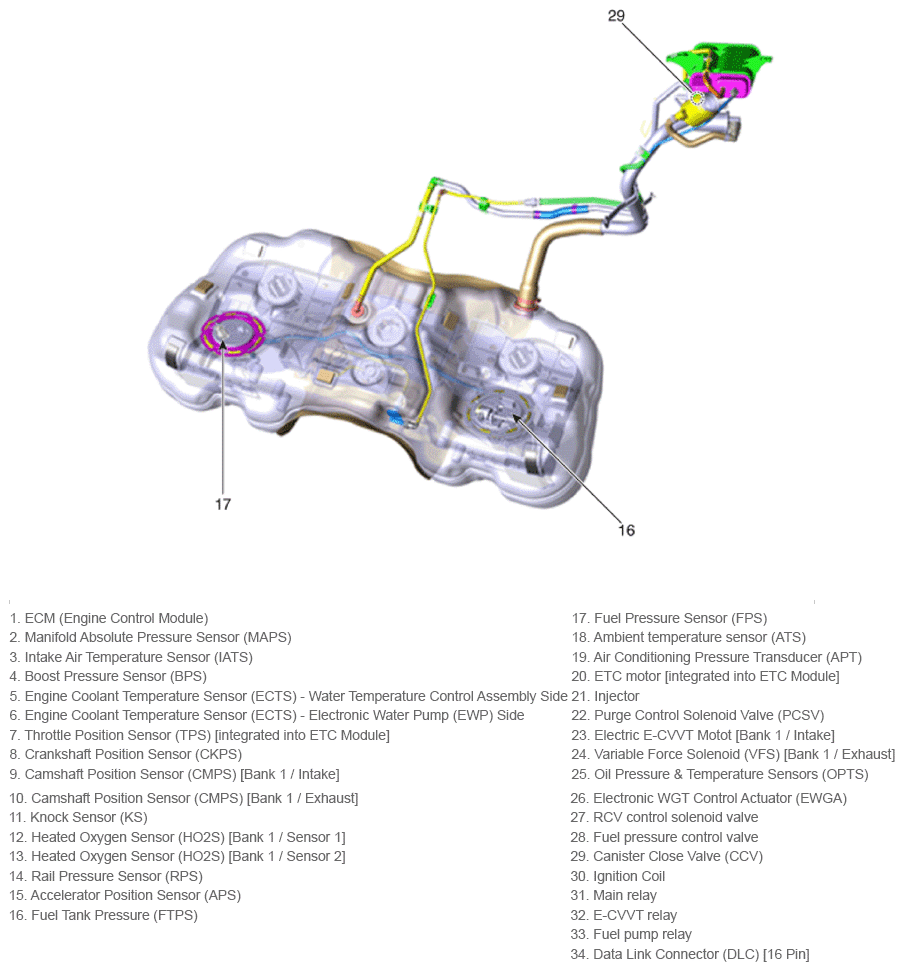

G16829911Courtesy of HYUNDAI MOTOR AMERICA

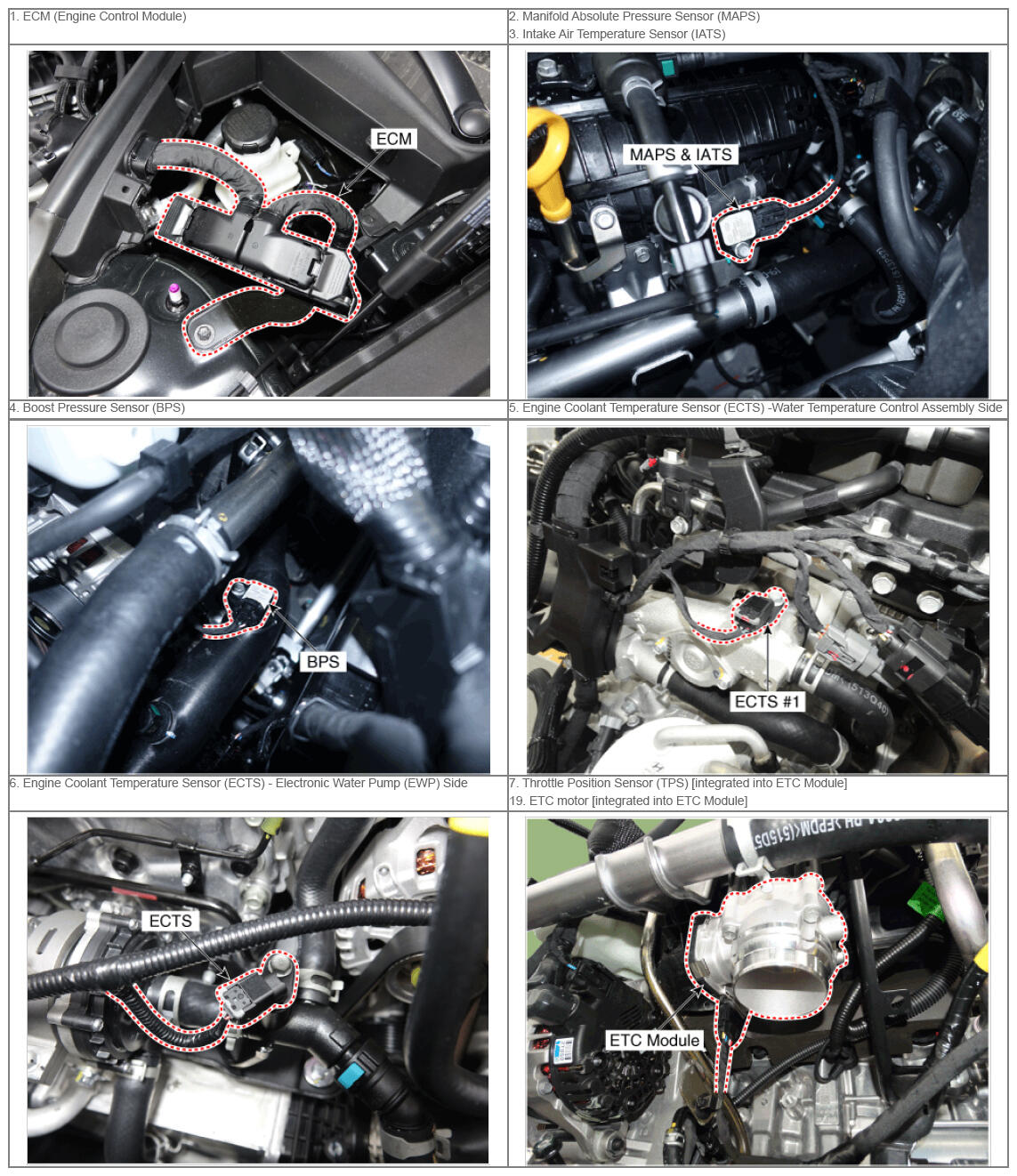

G16829912Courtesy of HYUNDAI MOTOR AMERICA

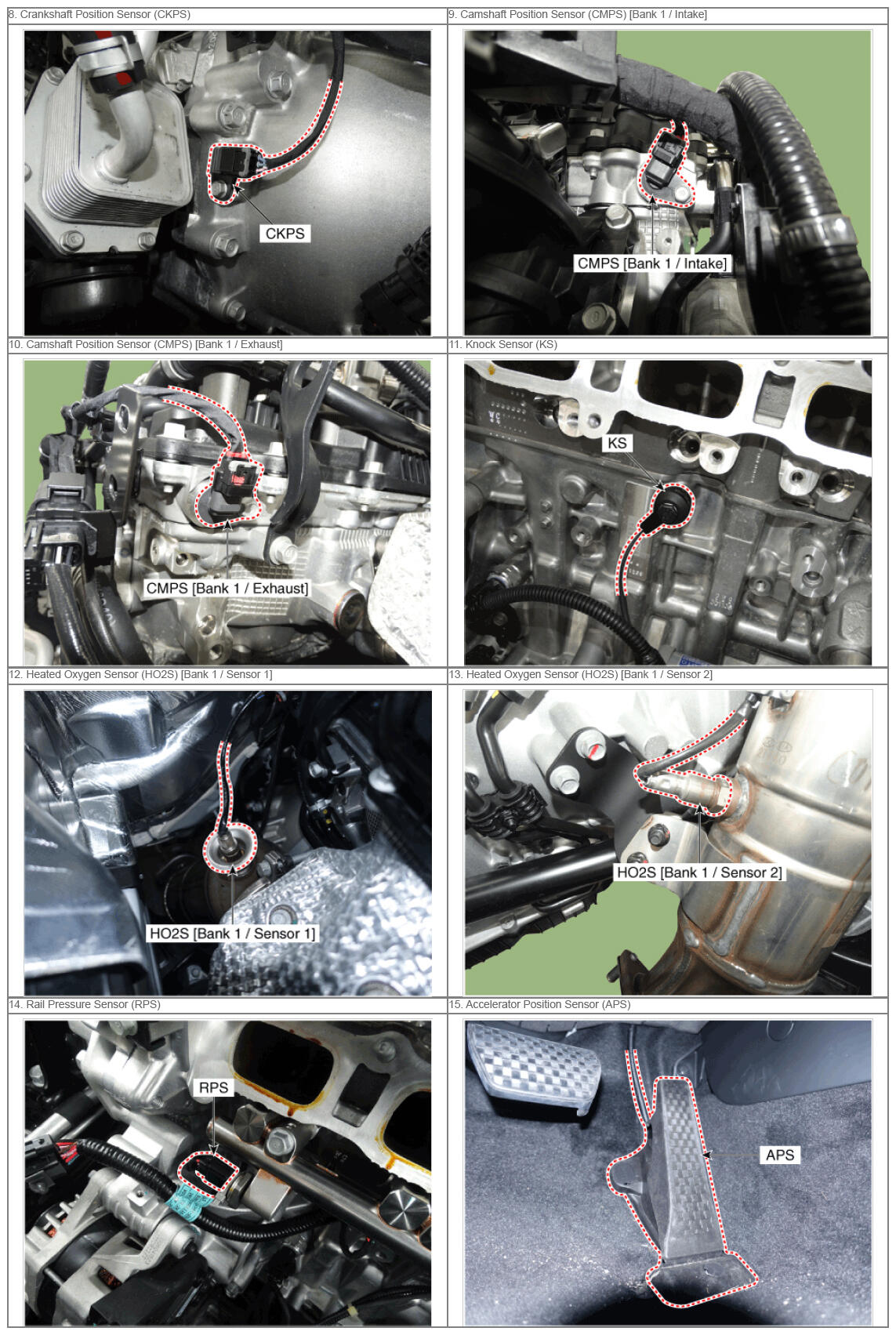

G16829913Courtesy of HYUNDAI MOTOR AMERICA

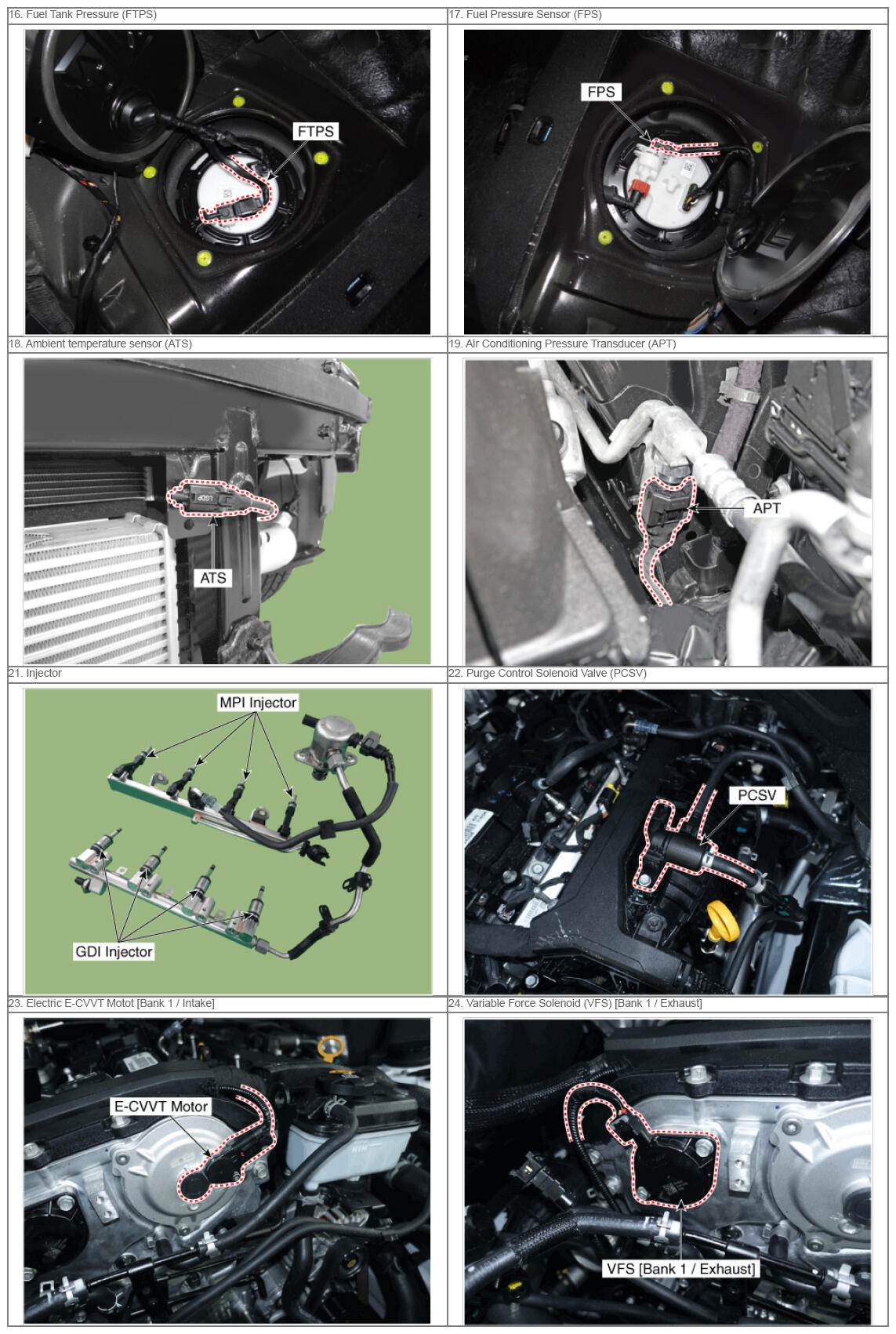

G16829914Courtesy of HYUNDAI MOTOR AMERICA

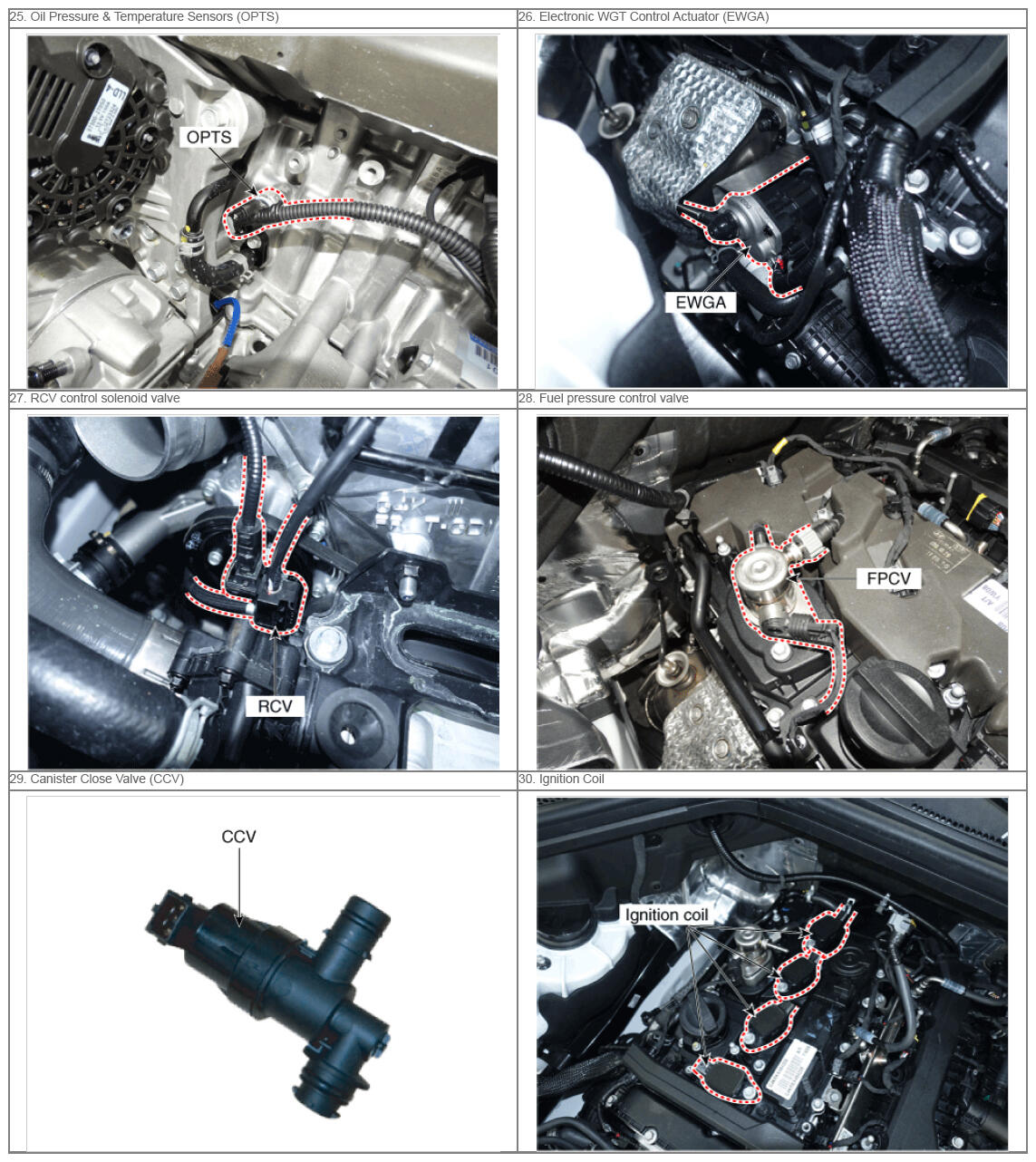

G16829915Courtesy of HYUNDAI MOTOR AMERICA

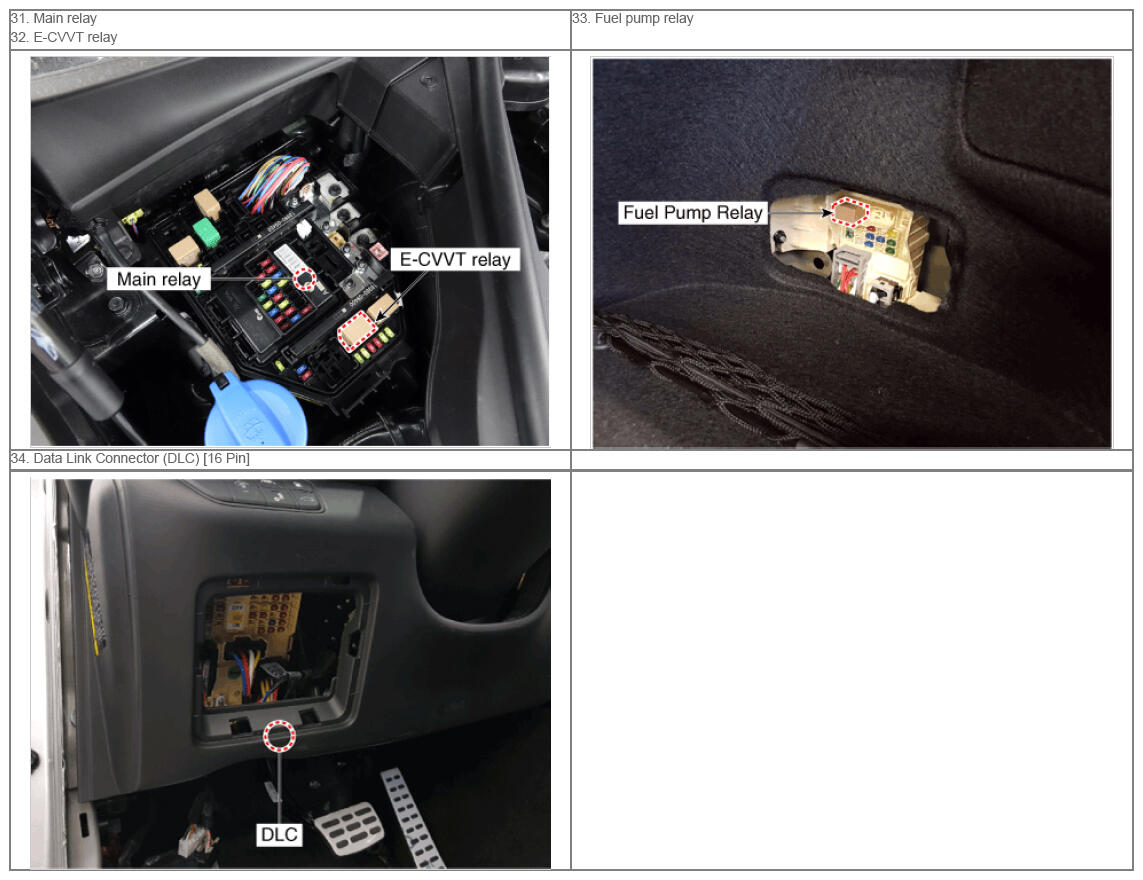

G16829916Courtesy of HYUNDAI MOTOR AMERICA
