GDI Injector

Release the Residual Pressure in Fuel Line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the Air Cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the Intake Manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

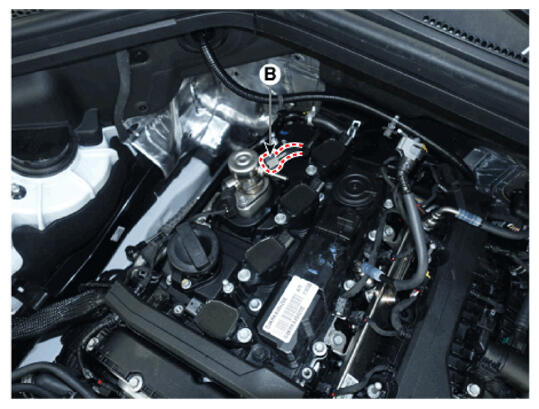

Disconnector the injector foam (A).

Courtesy of HYUNDAI MOTOR AMERICA

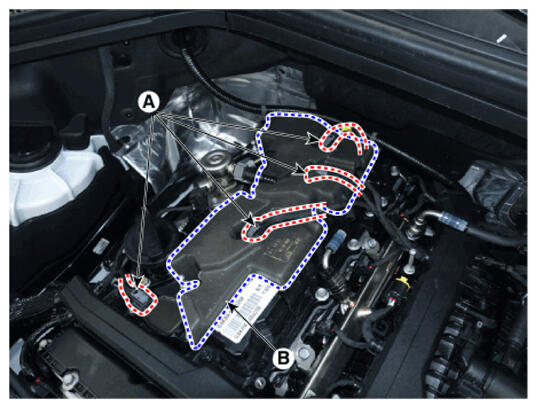

Disconnect the ignition coil connector (A).
Remove the ignition coil foam (B).

Courtesy of HYUNDAI MOTOR AMERICA

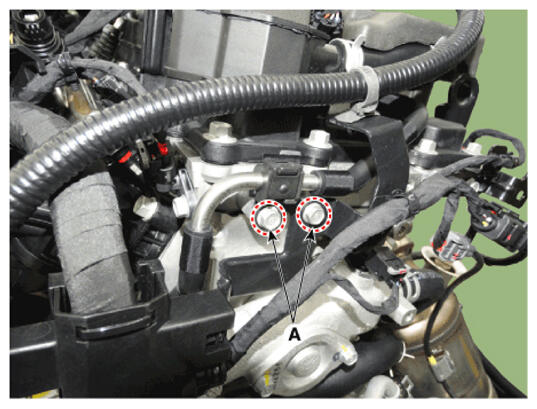

Remove the high pressure fuel pipe bracket installing bolt (A), and remove the flange nut (B).
Tightening torque:
1. 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
2. 29.4 - 35.3 N.m (3.0 - 3.6 kgf.m, 21.7 - 26.0 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

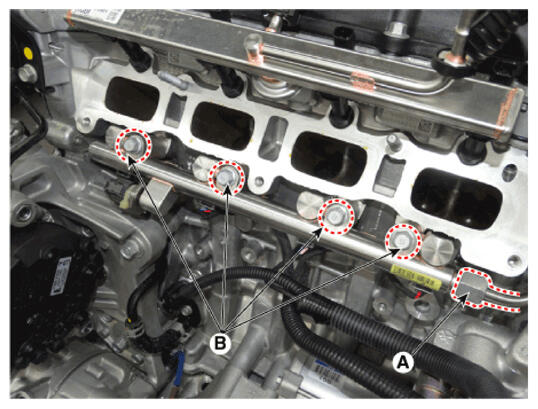

Remove the high pressure fuel pipe flange nut (A).
After remove the installing bolt (B), remove the delivery pipe & injector assembly.
Tightening torque
1. 29.4 - 35.3 N.m (3.0 - 3.6 kgf.m, 21.7 - 26.0 lb-ft)
2. 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.3 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

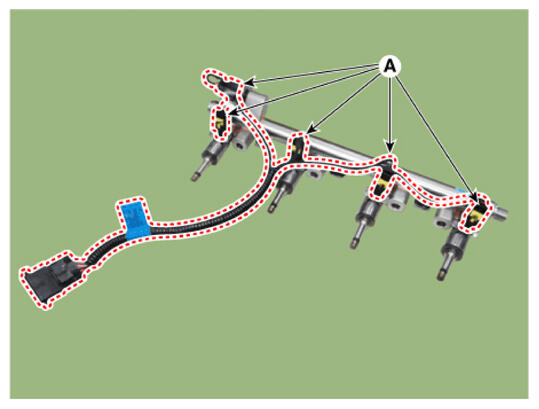

Disconnect the injector & rail sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

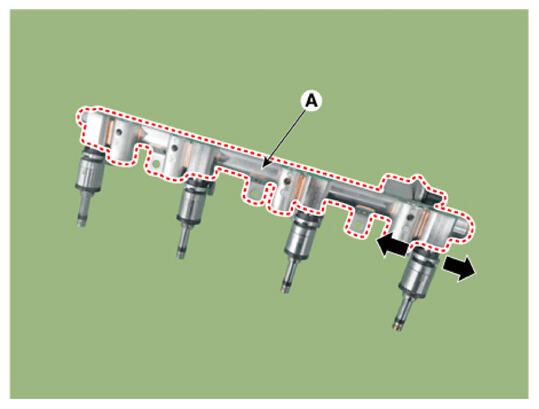

Remove the injector from the fuel rail (A) after releasing the fixing clip both side as shown in illustration below.

Courtesy of HYUNDAI MOTOR AMERICA
