Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
Remove the Air Cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

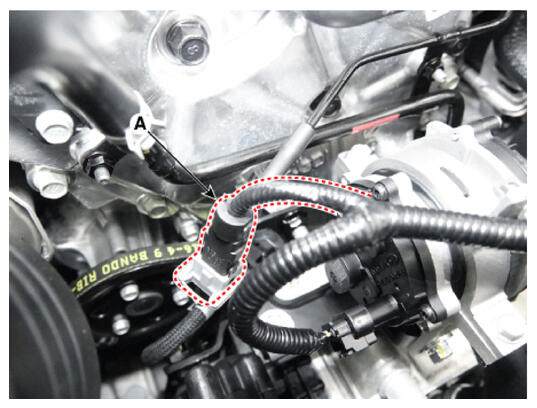

Disconnect the RCV control solenoid valve connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

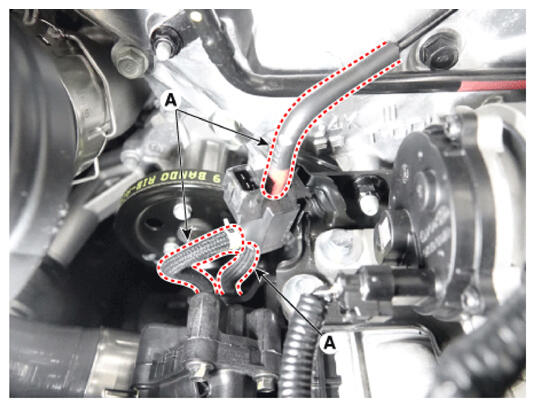

After disconnecting the RCV hoses (A), remove the bolt.
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
