Repair Procedures: Installation
- Install in the reverse order of removalNOTE:

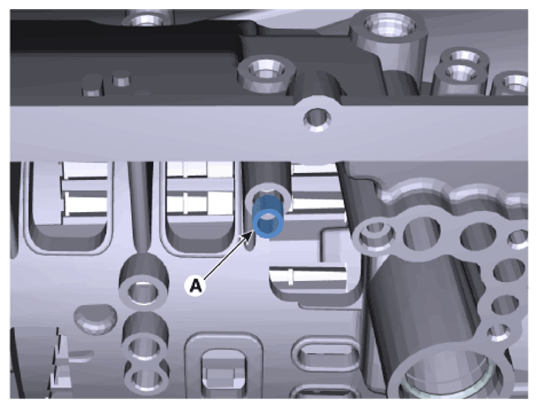

- Check if the pipe seal (A) is inserted on the marked area before mounting the valve body assembly.
- Refill the automatic transmission with fluid.
(Refer to Automatic Transmission System - "AUTOMATIC TRANSMISSION FLUID (ATF) ")
