Repair Procedures: Installation
- Install in the reverse order of removal.

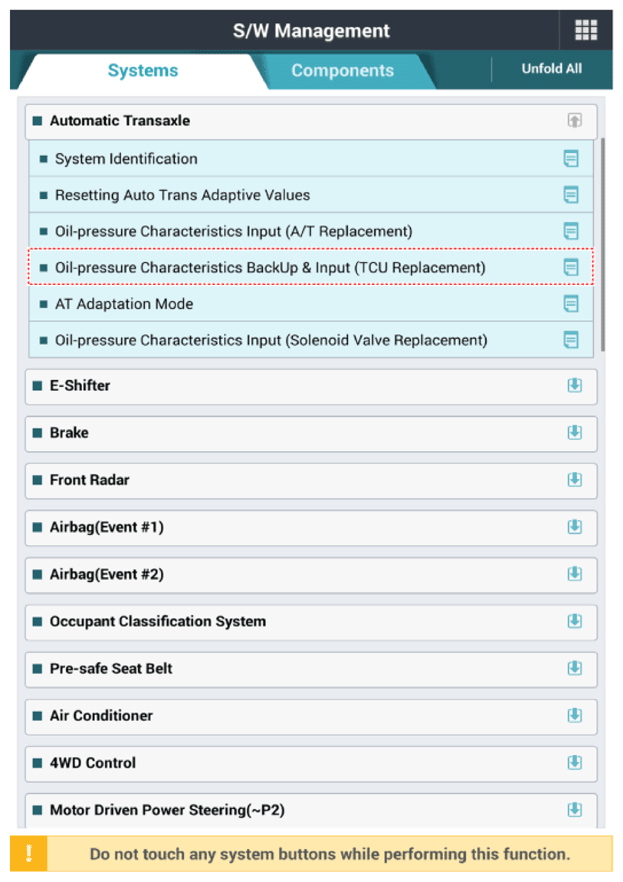

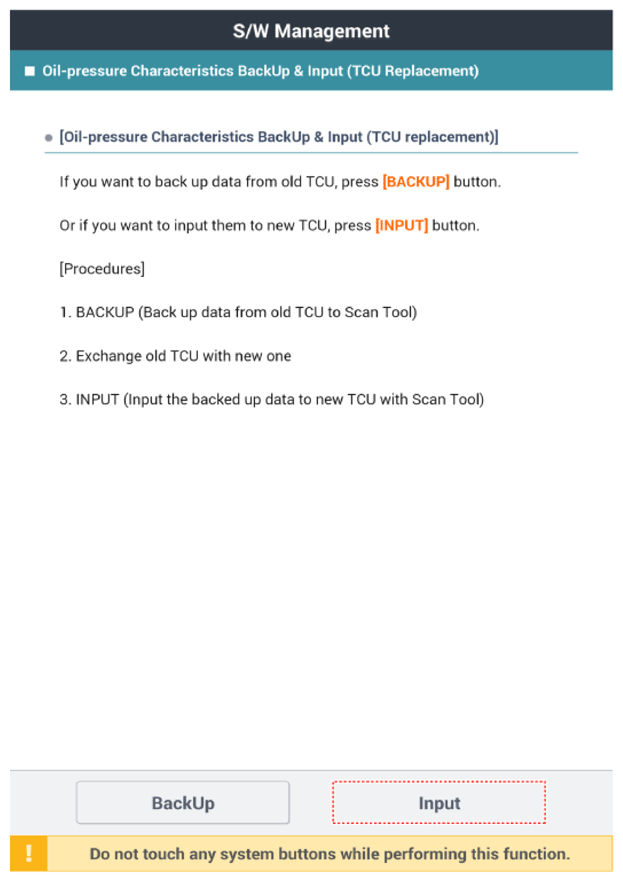

- Perform the oil pressure characteristics backup procedure using the GDS when replacing with a new TCM.
- In order to avoid any problem including sense of starting delay of the transmission and shock at acceleration and vehicle start, make sure to process learning for TCM after replacing the transmission/TCM.
(Refer to Automatic Transmission Control System - "ADJUSTMENT " - TCM learning)
