Repair Procedures: Removal

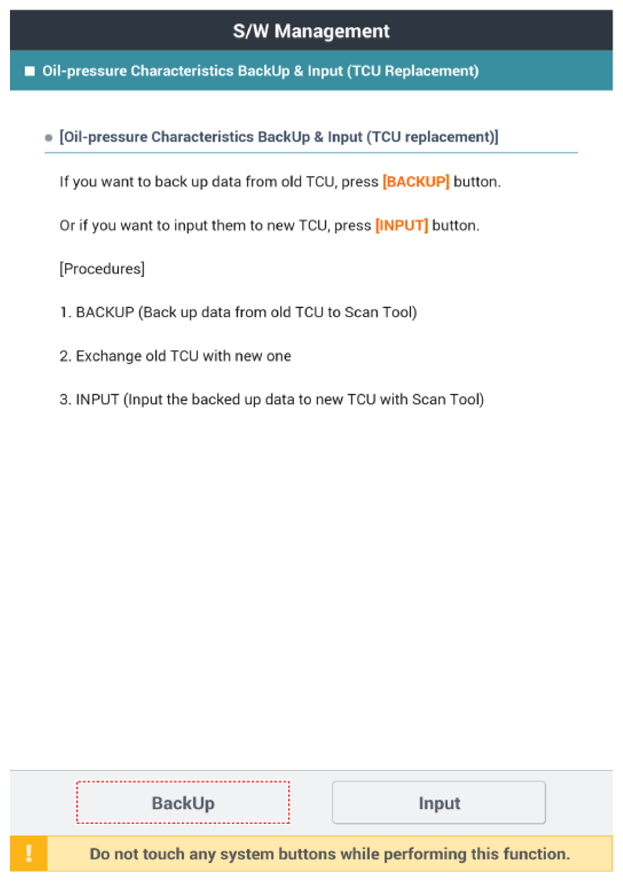

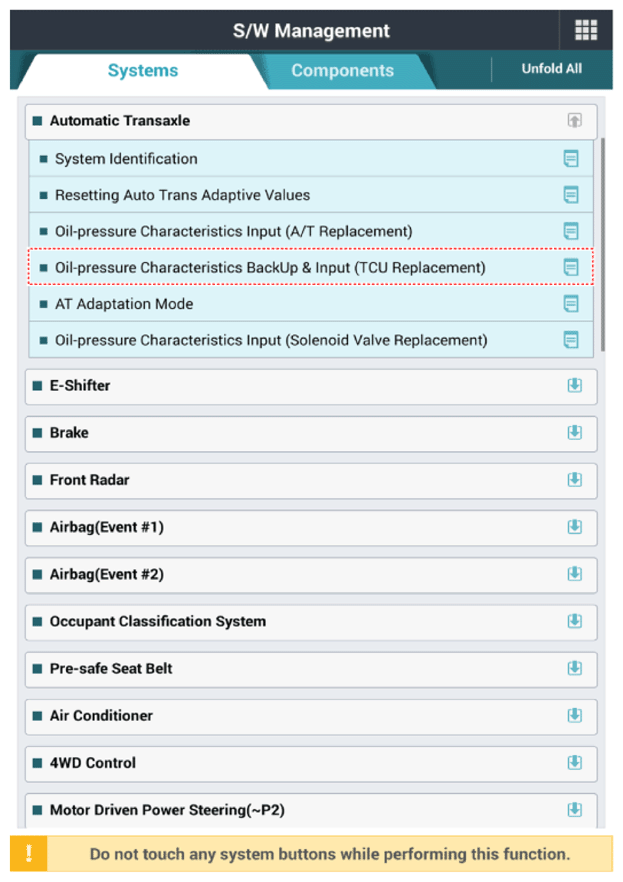

  1. Perform the oil pressure characteristics backup procedure using the GDS when replacing with a new TCM.
    G16830421Courtesy of HYUNDAI MOTOR AMERICA
    G16830422Courtesy of HYUNDAI MOTOR AMERICA

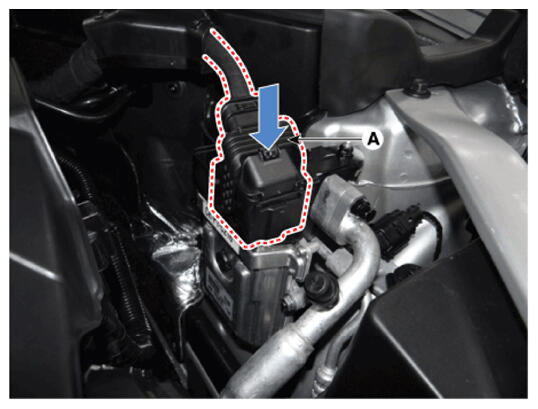

  2. Disconnect the TCM connector (A).
    G16830423Courtesy of HYUNDAI MOTOR AMERICA

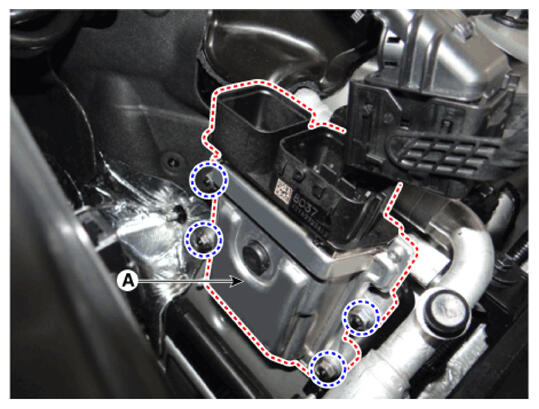

  3. Remove the TCM (A) after loosening the nuts.
    G16830424Courtesy of HYUNDAI MOTOR AMERICA
