Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the water center pipe.
(Refer to Engine Mechanical System - Water Temperature Control Assembly - "WATER CENTER PIPE ")

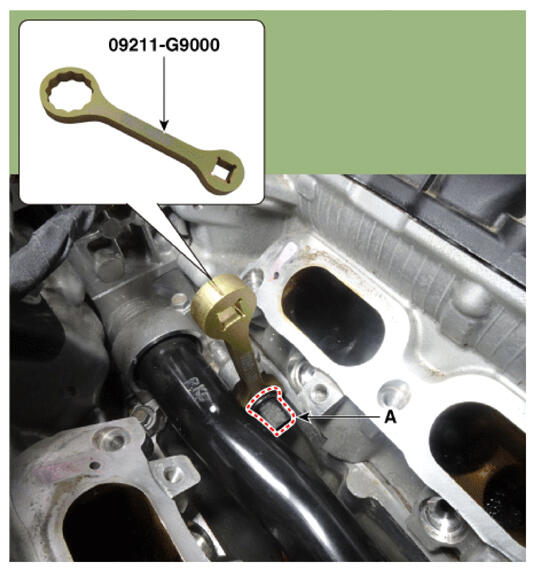

- Remove the oil pressure & oil temperature sensor (OPTS) (A) by using SST (09211-G9000).
