Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- (Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the air cleaner assembly.
(Refer to AIR CLEANER .) If needed.

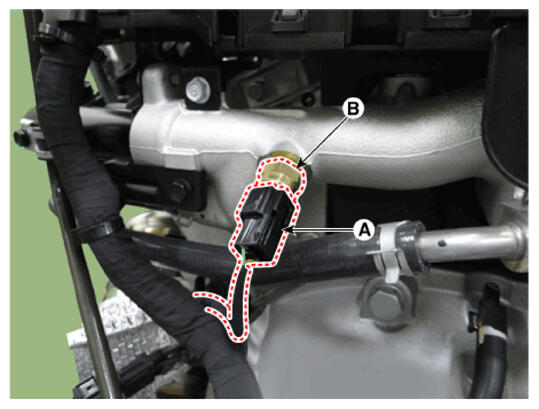

- Disconnect the engine coolant temperature sensor connector (A).
(Refer to COMPONENTS AND COMPONENTS LOCATION )
- Remove the water temperature sensor (B) from the water temperature control assembly.CAUTION:
- Note that engine coolant may leak out of the water temperature control assembly when removing the sensor.
