Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Open the trunk and remove the luggage side trim [LH]. (Refer to Body - "LUGGAGE SIDE TRIM
")

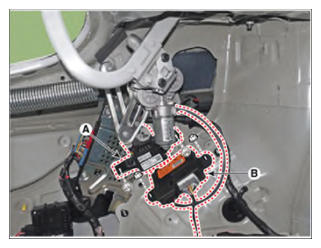

- Loosen the mounting nuts, remove the fuel pump control module (A) and power trunk actuator (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|

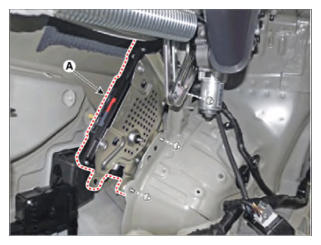

- Disconnect the external amp connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Loosen the mounting nuts and remove the external amp (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
