Engine Control System Diagnosis - 2.5L (1 Of 6)
>>
DTC P00D1-00: HO2S Heater Control Circuit Range/Performance Bank 1 Sensor 1
>>
Troubleshooting
>>
Diagnostic Flow-chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

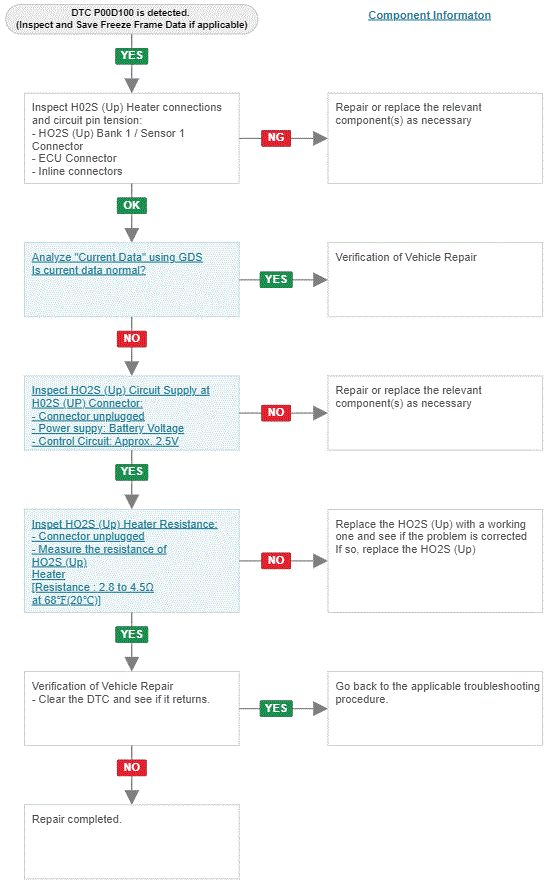

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
