Repair Procedures: Inspection

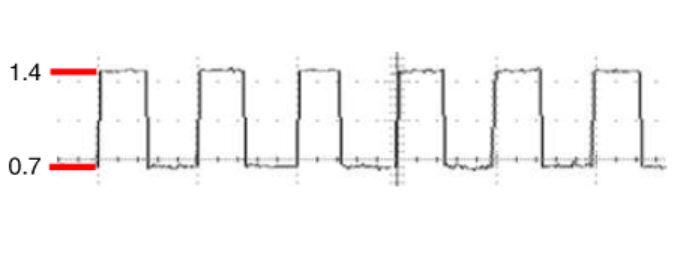

  1. Check signal waveform of input speed sensor using the diagnostic tool.

    Specification:  Refer to "Signal Wave Form" information .

    G15548155Courtesy of HYUNDAI MOTOR AMERICA
