Parking Body: Installation
- To install, reverse the removal procedures.CAUTION:

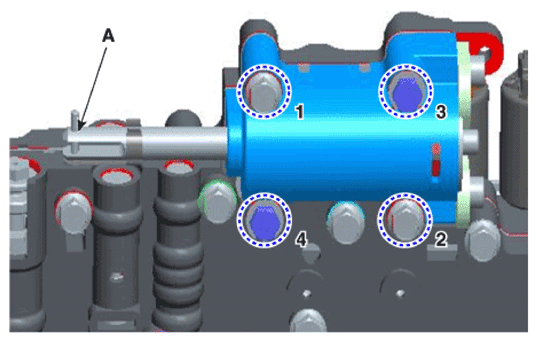

- Carefully install standard the bolt & washer (3, 4) not to change with other bolts.
- When install parking body mounting bolts, standard bolts (3, 4) installed for the first time.
- Install the parking body bolts as following method. (3→4→1→2)
- The parking body load pin (A) install in the opposite direction of the valve body.
- Fill the oil through ATF injection hole.
(Refer to Hydraulic system - "FLUID ")
CAUTION:
After ATF level check or exchange, be sure to remove residual ATF on transmission case.
(Be especially sure to remove residual ATF between automatic transmission case and valve body cover)
