Parking Distance Warning Sensor

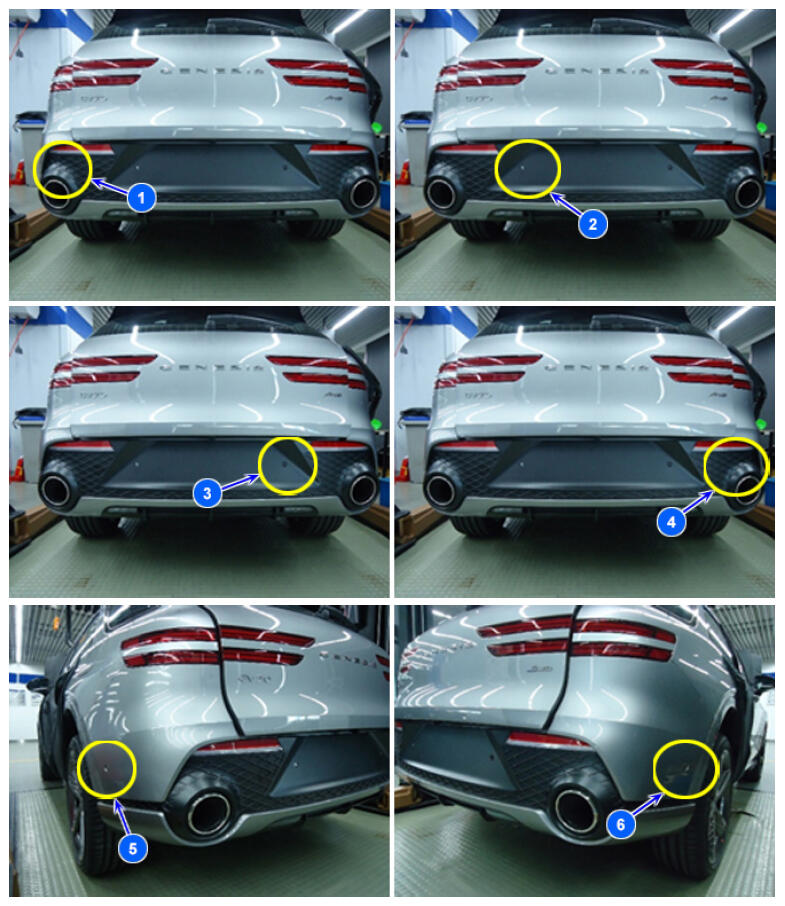

G16849545Courtesy of HYUNDAI MOTOR AMERICA

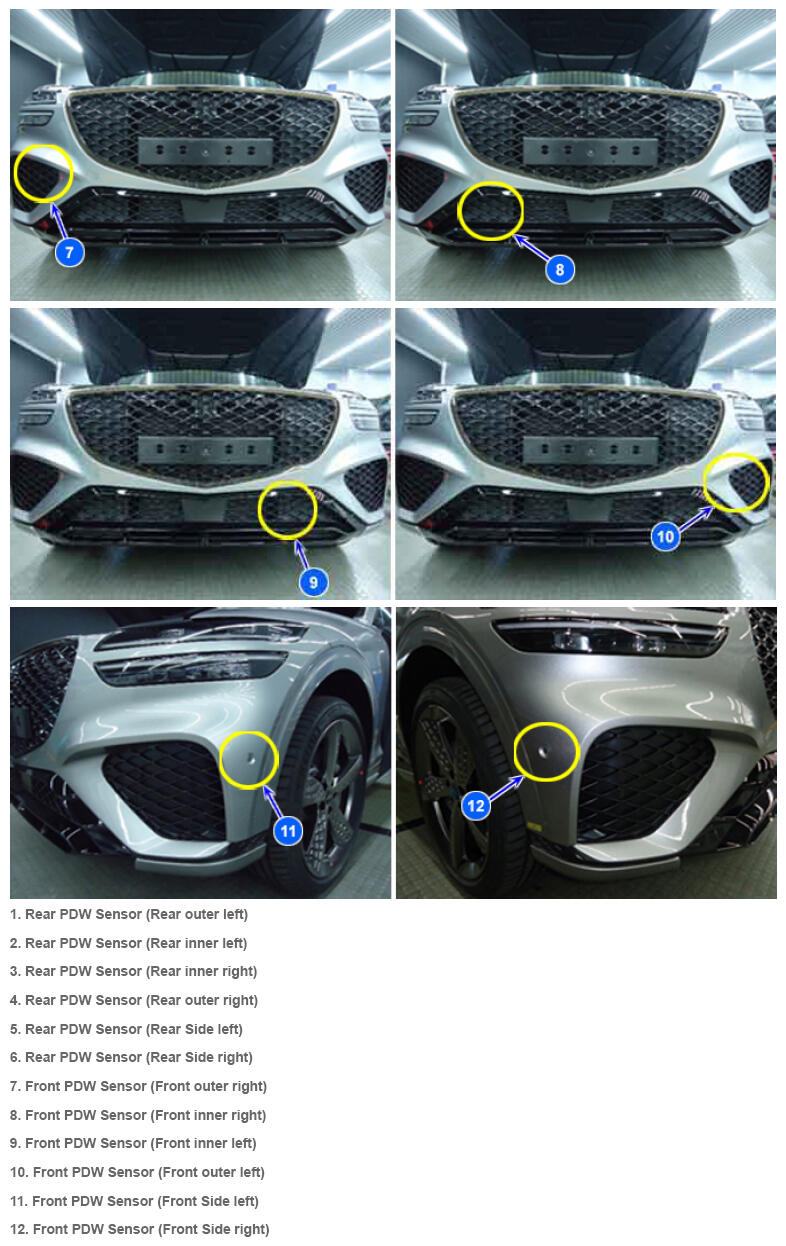

G16849546Courtesy of HYUNDAI MOTOR AMERICA

The ADAS-PRK (Advanced driver assistance system - Parking) consists of many ultrasonic sensors: 4 front sensors, 2 side sensors in the front, 4 rear sensors, and 2 side sensors in the rear. The front and rear sensors senses an object in front of and behind the vehicle while the side ones search for parking spaces.
