Diagnostic Flowchart

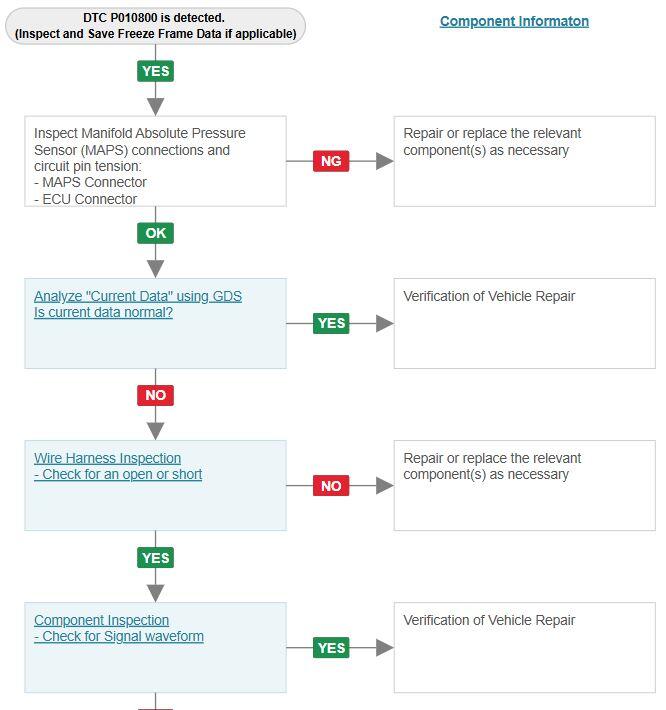

Fig 1: P0108-00 (1 Of 2)
G16857585Courtesy of HYUNDAI MOTOR AMERICA

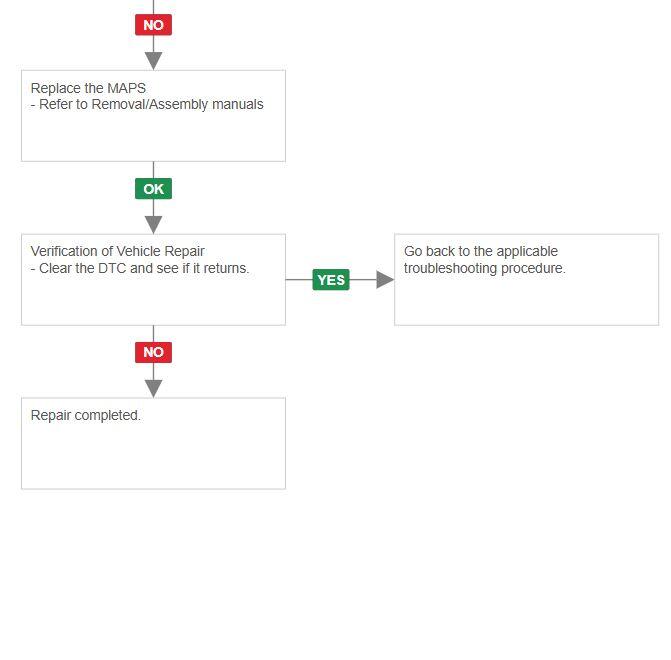

Fig 2: P0108-00 (2 Of 2)
G00664405Courtesy of HYUNDAI MOTOR AMERICA
