Variable Force Sensor (VFS) [Bank 1/Intake]

WARNING: This page is about a different variant/trim than selected.

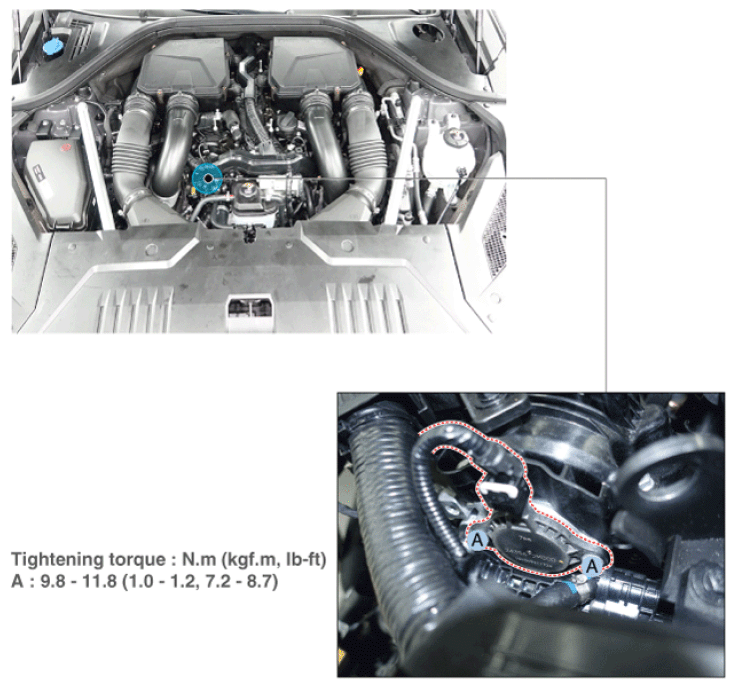

Fig 1: Variable Force Sensor Components Location With Torque Specifications (Bank 1 / Intake)
G16840706Courtesy of HYUNDAI MOTOR AMERICA
