Output Shaft Speed Sensor: Inspection

  1. Check signal waveform of speed sensor using the diagnostic tool.

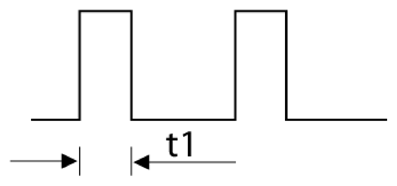

    f < 1000 Hz D
    G16847437Courtesy of HYUNDAI MOTOR AMERICA

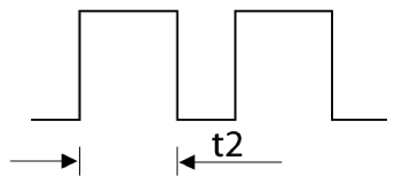

      R
    G16847438Courtesy of HYUNDAI MOTOR AMERICA
    f > 1000 Hz D
    R

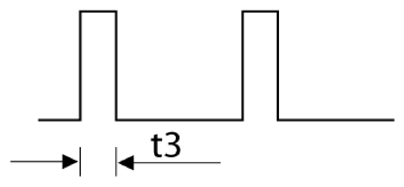

    G16847439Courtesy of HYUNDAI MOTOR AMERICA
    Pulse
    Width    		 t1 (D): 60μS (50 - 70us)
    t2 (R): 120μS (102 - 138us)
    t3: 30μS (24 - 36us)
