How to Check/Adjust Front Radar Installation Angle - Stop Mode
Information
Preparation before the front radar alignment:
- Put the vehicle on the level ground.
- Take out heavy luggage from the vehicles' seats or trunk.
- Set all tires according to the specified pressure.
- Check wheel alignment.
- Check that the front surface of the front radar is clean.
NOTE:

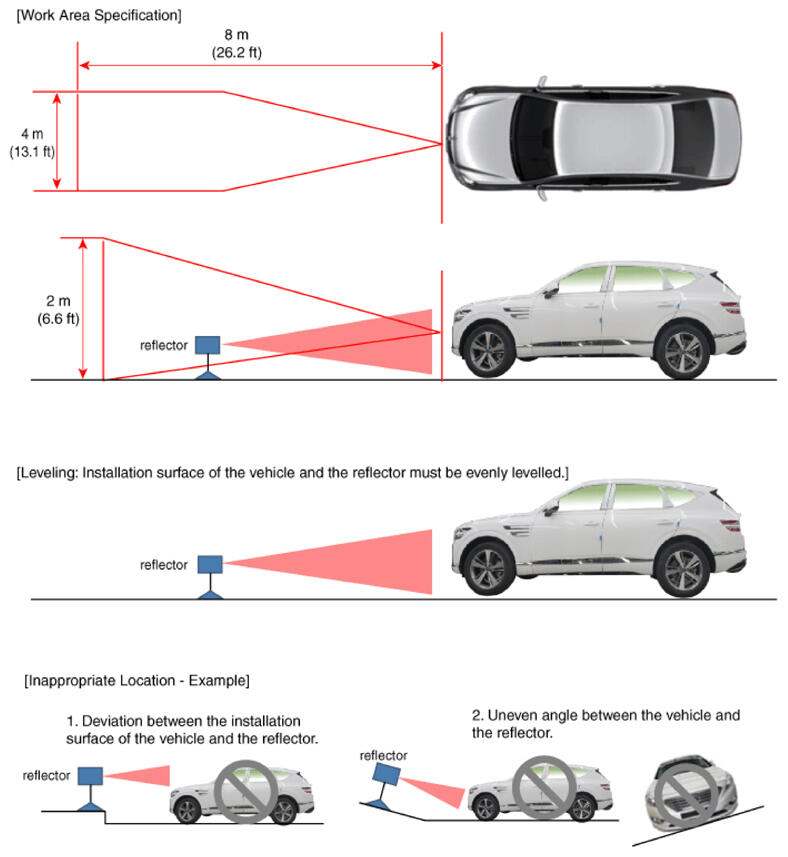

- Perform in an area with minimum clearance of 8m (26.2 ft) front, 4m (13.1 ft) sides, and 2 m (6.6 ft) above the vehicle.
- Install the reflector exactly 2.5 m (8.2 ft) away from the Front Radar.
- The reflector has to be installed at same place (height and angle) as front radar center.
(If height and angle are different, then adjustment can not be done correctly.)
- Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where front radar alignment is performed.
- Make sure to use exclusive reflector (OK964-J5100)
- Be sure that the vehicle is not moved and free from vibration when performing front radar alignment (getting in/out or opening/closing doors).
- IG has to be on when performing front radar alignment. (engine stop condition)
- Stop the vehicle horizontally at a flat place.

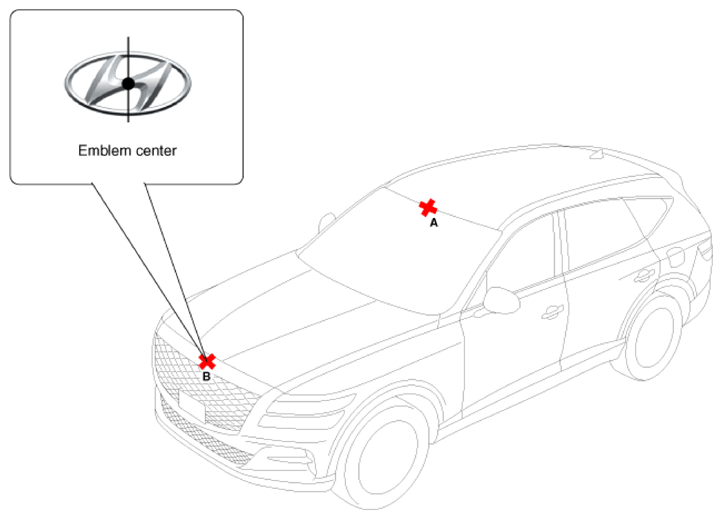

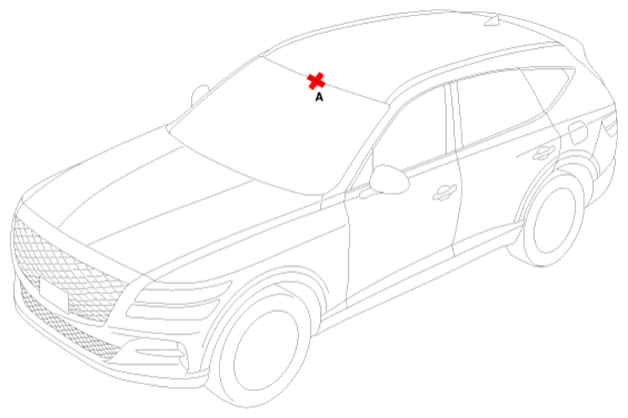

- Mark the center point (B) after measuring the distance on top of wind glass.
- Mark the center point of emblem (A).

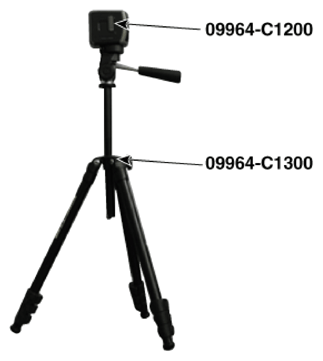

- Install the laser (09964-C1200) to the tripod (09964-C1300).

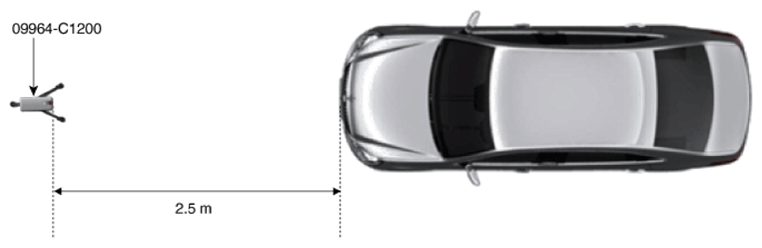

- Place the laser (09964-C1200) at 2.5m (8.2 ft) to the front of the vehicle.

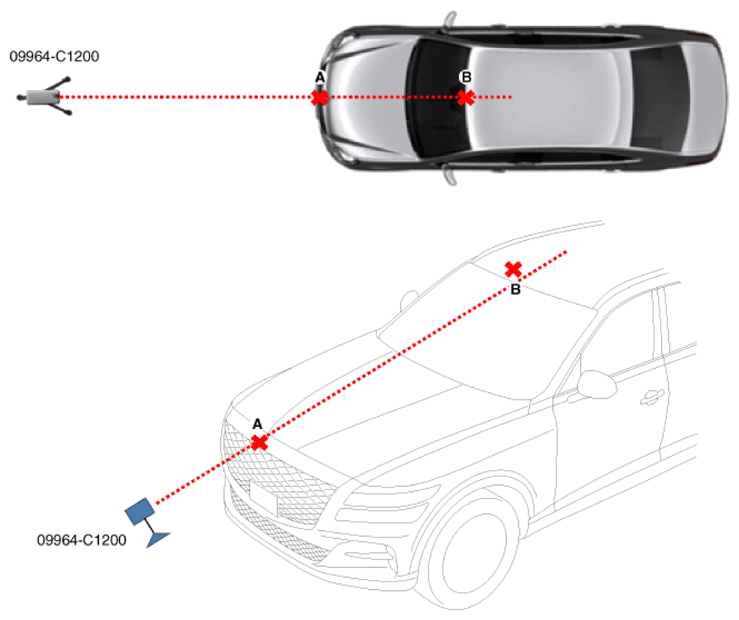

- Match the vertical line of laser to (A) and (B) using the laser (09964-C1200).

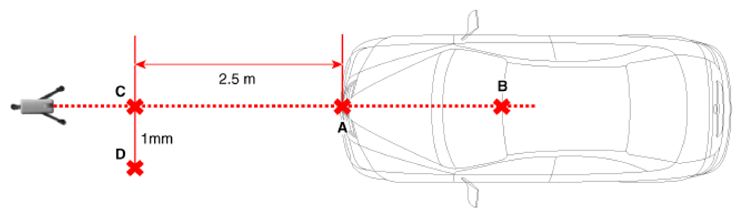

- Mark (C) at 2.5 m (8.2 ft) from (A) in front of the vehicle.
- Mark (D) at the place which is 1 mm away from (C) to the left in vertical direction.
- Remove the laser (09964-C1200) from the tripod (09964-C1300).

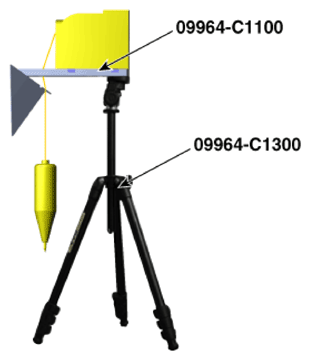

- Mount the reflector (09964-C1100) onto the tripod (09964-C1300).

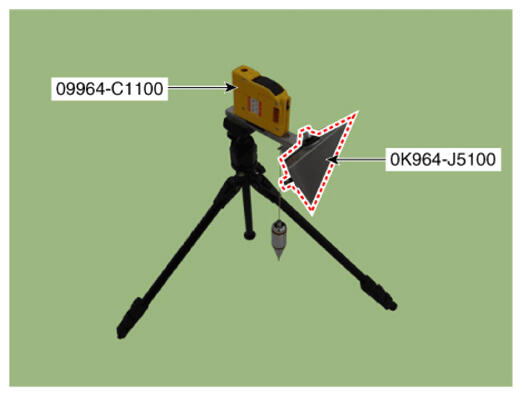

- Mount the reflector adapter (0K964-J5100) to the reflector (09964-C1100).

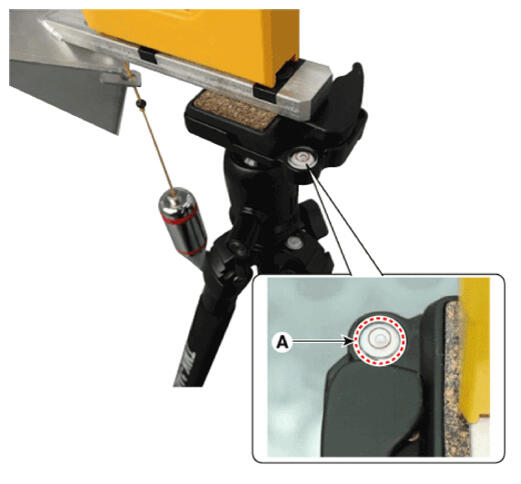

- Set the reflector horizontal using the leveler (A) which is built in the tripod (09964-C1300).

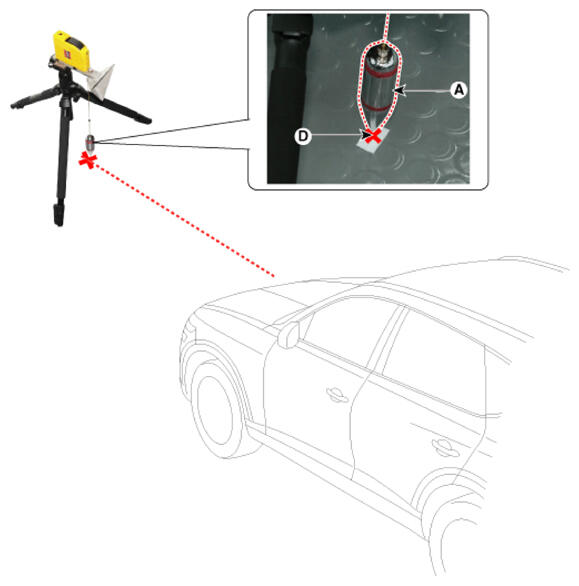

- Align the vertical weight (A) of the reflector (09964-C1100) with the point (D).

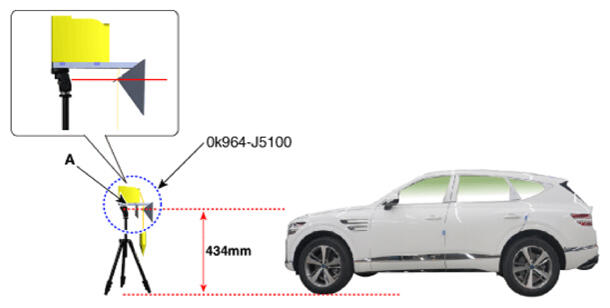

- Set the height of the reflector adapter (0K964-J5100) to 434 mm (17.08 inch).
- Remove the vertical weight from the reflector (09964-C1100).NOTE:
- It can be effected to adjustment if the vertical weight is still left.
- Check again the front radar and the surface of front bumper for the following items with the eyes.NOTE:
- Make sure that there is no debris, or reflecting object on the surface of the radar.
- Make sure that there is no debris, or reflecting object on the radiator grill.

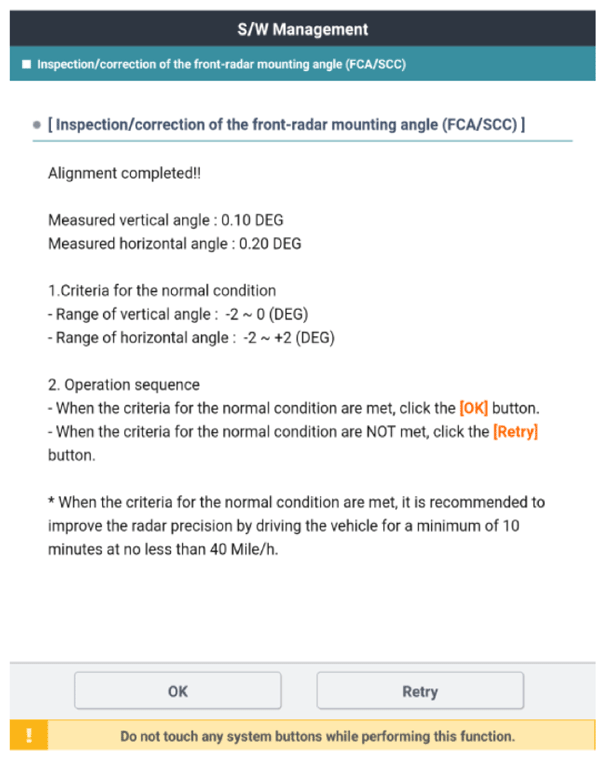

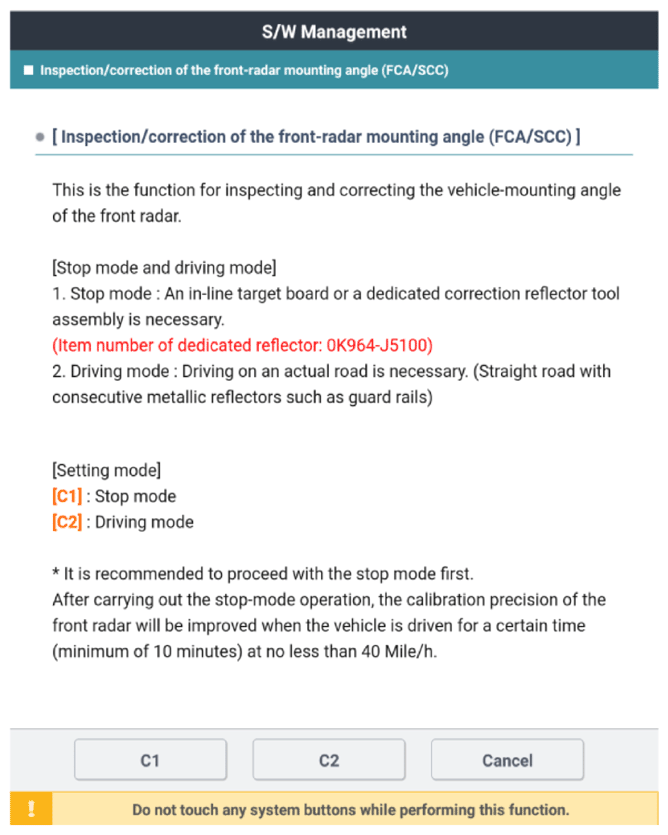

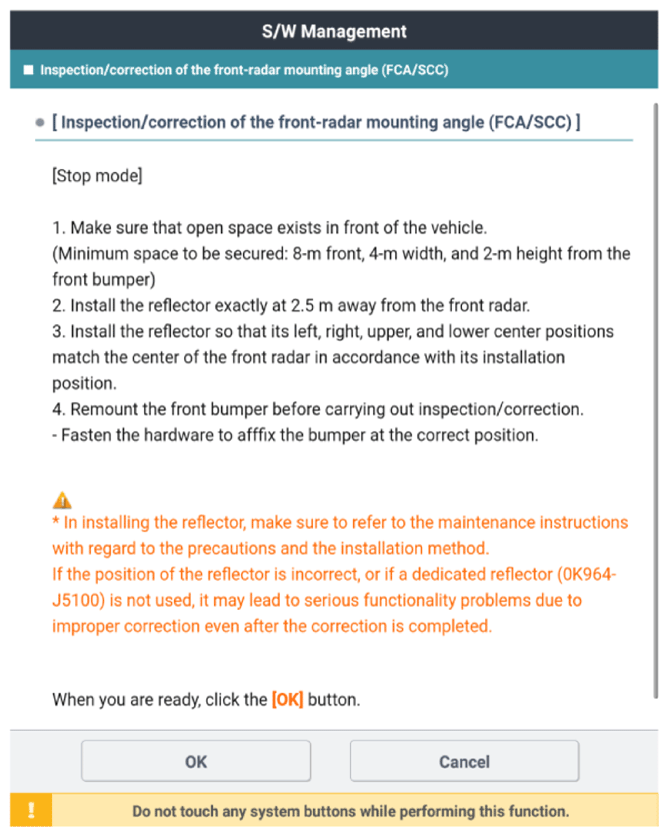

- Select C1 (stop mode) to inspect and adjust the front radar installation angle by following procedure on diagnostic tool screen.
