Diagnostic Flowchart

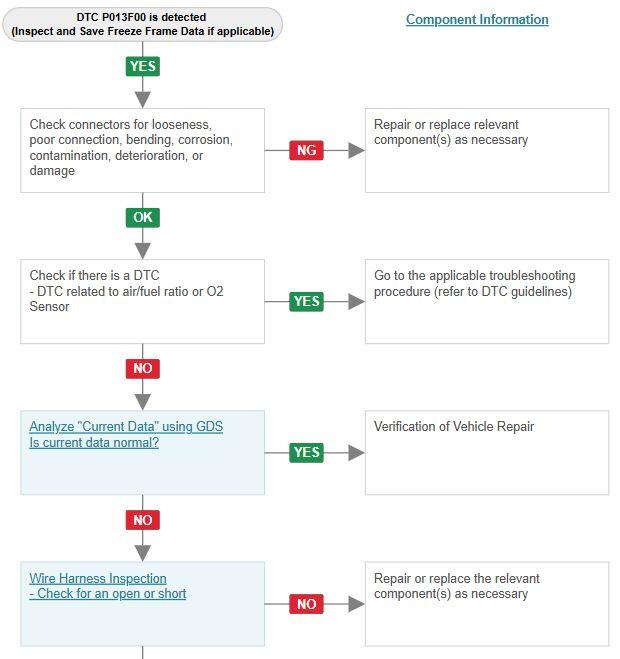

Fig 1: P013F-00 (1 Of 2)
G16778736Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: P013F-00 (2 Of 2)
G00664320Courtesy of HYUNDAI MOTOR AMERICA
