Diagnostic Flowchart

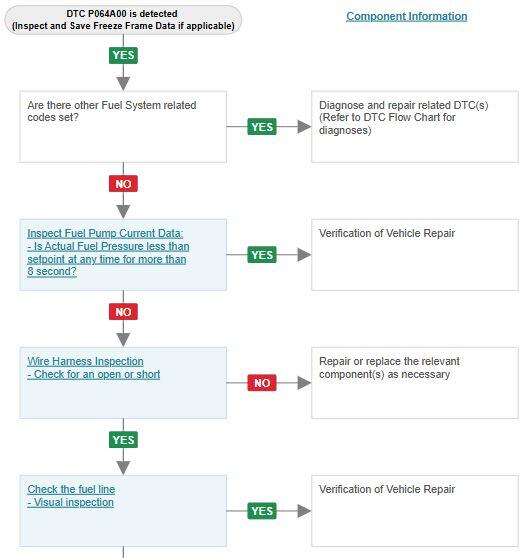

Fig 1: P064A-00 (1 Of 2)
G16779101Courtesy of HYUNDAI MOTOR AMERICA

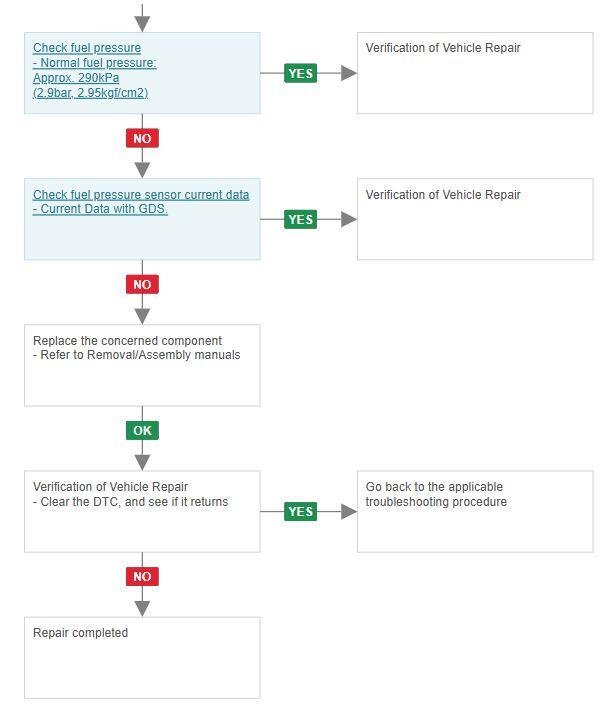

Fig 2: P064A-00 (2 Of 2)
G00664322Courtesy of HYUNDAI MOTOR AMERICA
