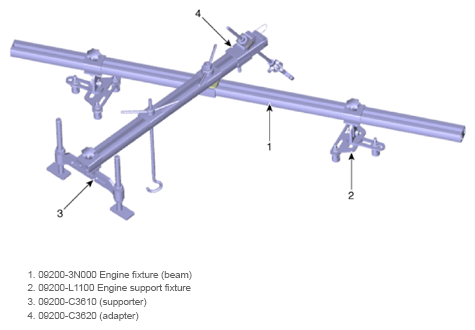

Engine Support Fixture Assembly Drawing

Courtesy of HYUNDAI MOTOR AMERICA

Information

• When using the adapter (09200-C3620), check the specified angle for each engine type

Gasoline 2.5 FR T-GDI (A:30)	Gasoline 3.5 FR T-GDI (B:40)	Diesel (I6) 3.0 VGT (A:30)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
