Repair Procedures: Disassembly

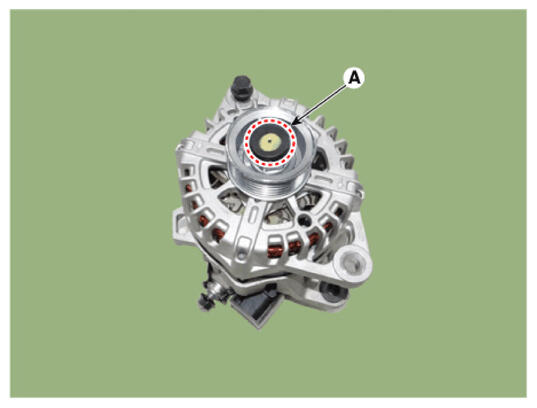

  1. Remove the shaft cap (A).
    G16769605Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new shaft cap.

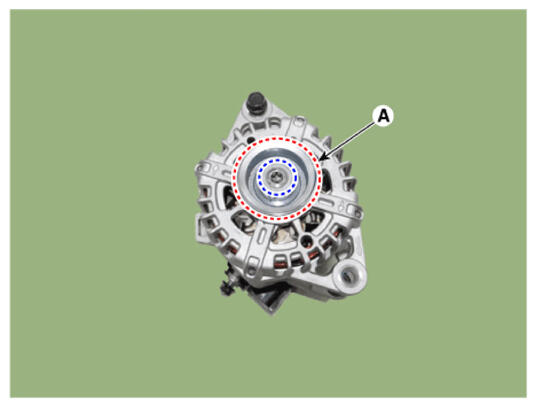

  2. Remove the pully (A) after loosening the mounting nut.
    G16769606Courtesy of HYUNDAI MOTOR AMERICA

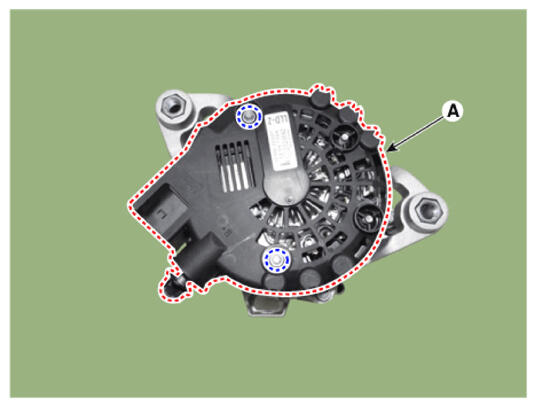

  3. Remove the alternator cover (A) after removing nuts.
    G16769607Courtesy of HYUNDAI MOTOR AMERICA

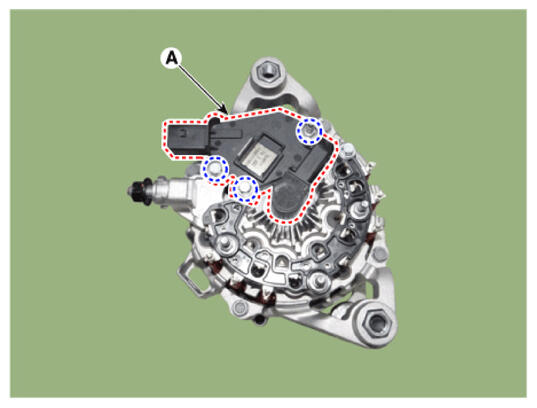

  4. Remove the mounting bolts and the brush holder assembly (A).
    G16769608Courtesy of HYUNDAI MOTOR AMERICA

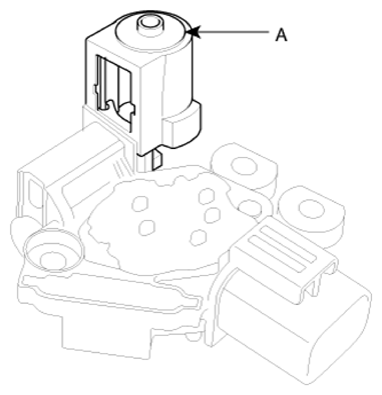

  5. Remove the slip ring guide (A) after pulling it.
    G16769609Courtesy of HYUNDAI MOTOR AMERICA

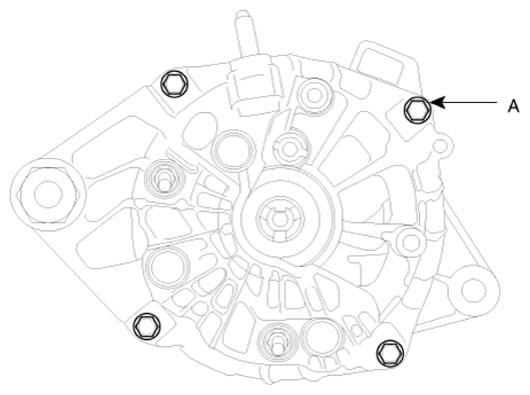

  6. Remove the mounting bolt (A).
    G16769610Courtesy of HYUNDAI MOTOR AMERICA

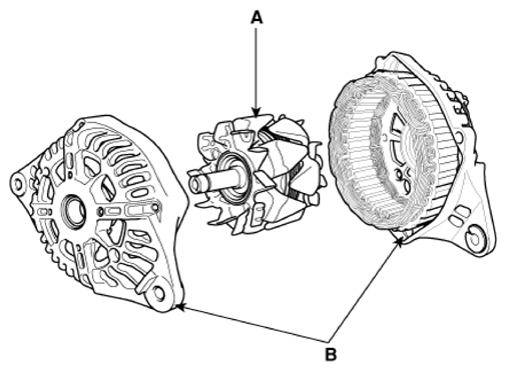

  7. Disconnect the rotor (A) and bracket (B).
G16769611Courtesy of HYUNDAI MOTOR AMERICA
