Removal & Installation: Notes

Turn the ignition switch OFF.
Remove the luggage mat.
(Refer to Body - "TRUNK TRIM ")

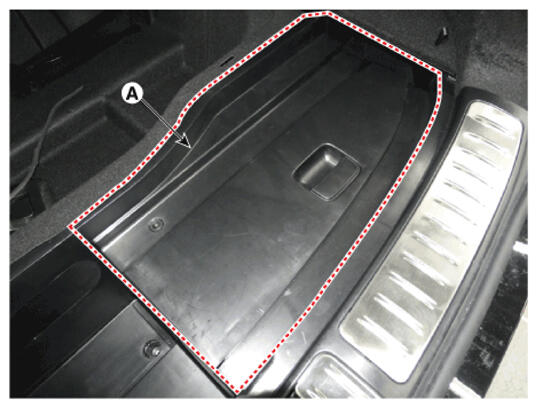

Remove the battery service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

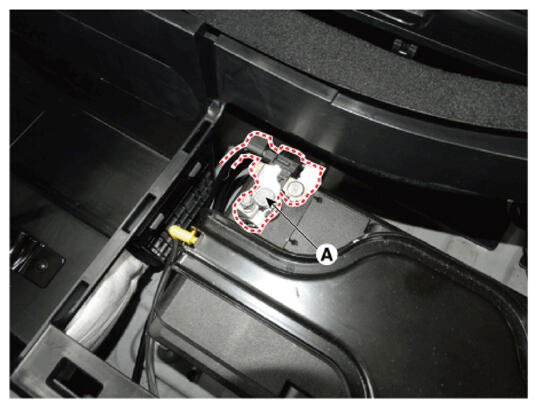

Disconnect the battery negative (-) terminal (A).
Tightening torque:

5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

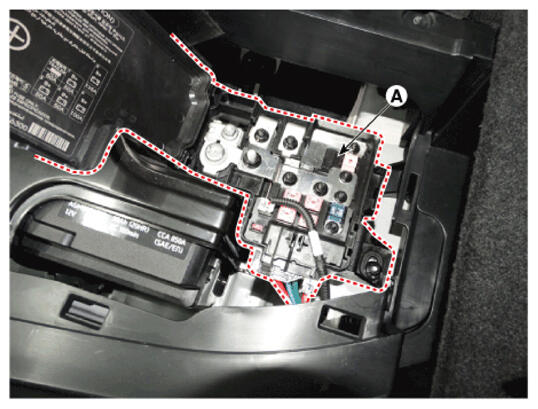

Disconnect the battery positive (+) terminal (A).
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

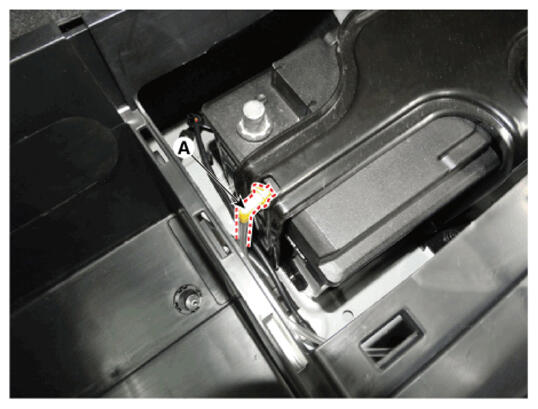

Disconnect the vent hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

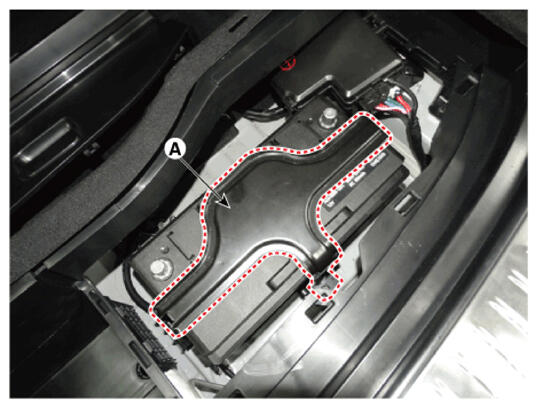

Remove the battery mounting bracket (A).
remove the battery.
Tightening torque:

27.4 - 33.3 N.m (2.8 - 3.4 kgf.m, 20.2 - 24.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
