Components And Components Location: Components

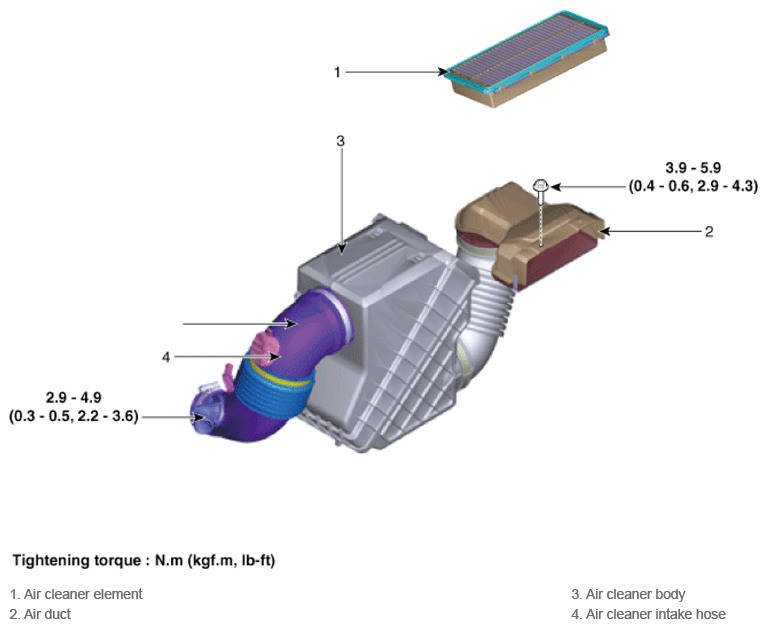

Fig 1: Intake And Exhaust System Components Location With Torque Specification
G16769504Courtesy of HYUNDAI MOTOR AMERICA
