Components And Components Location: Components

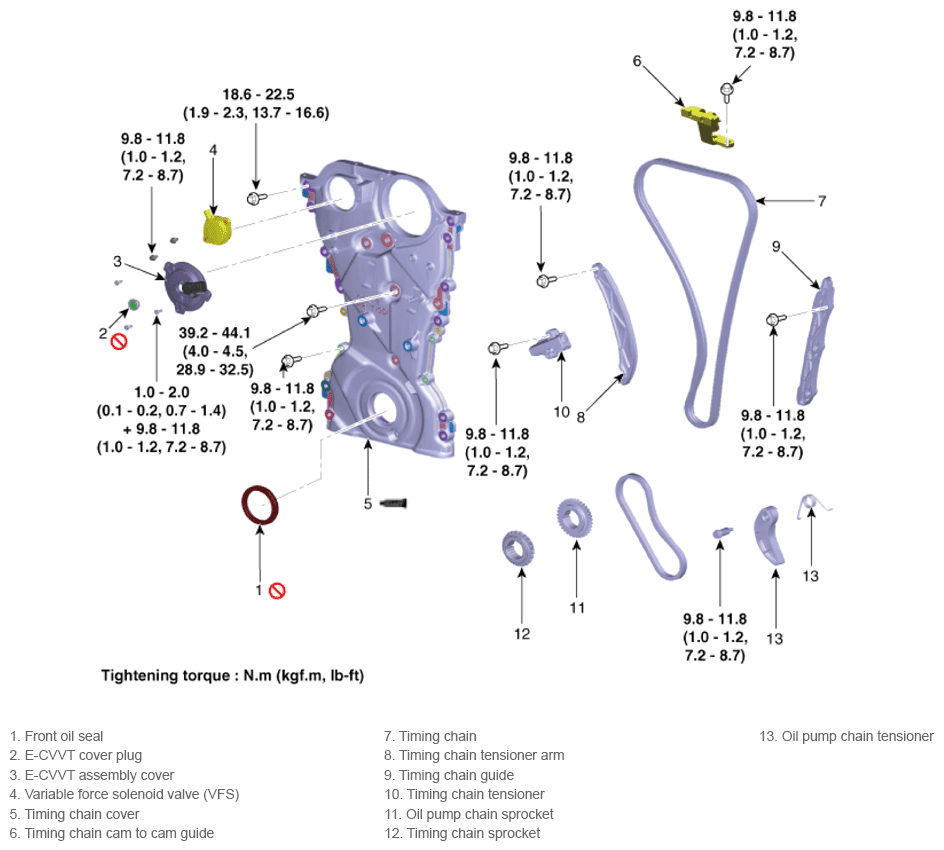

Fig 1: Timing System Components Location With Torque Specification
G16769198Courtesy of HYUNDAI MOTOR AMERICA
