Repair Procedures: Installation

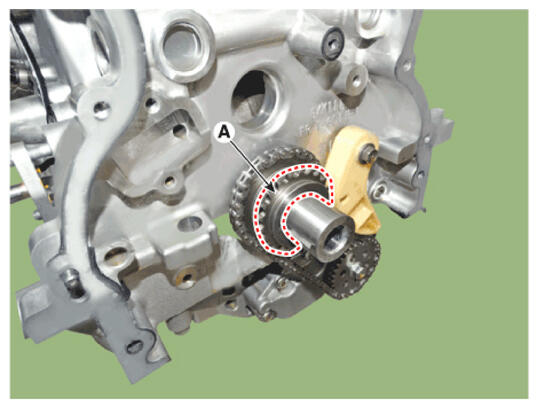

Install the crankshaft chain sprocket (A) for the timing chain.

Courtesy of HYUNDAI MOTOR AMERICA

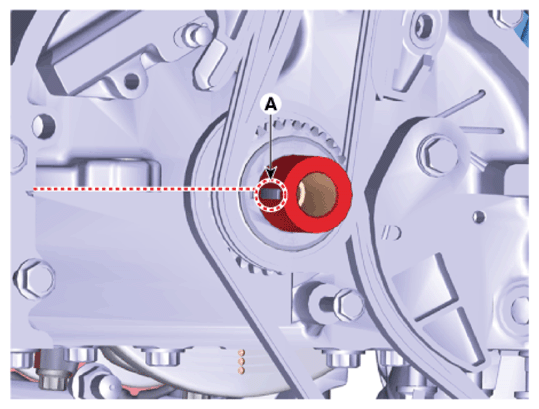

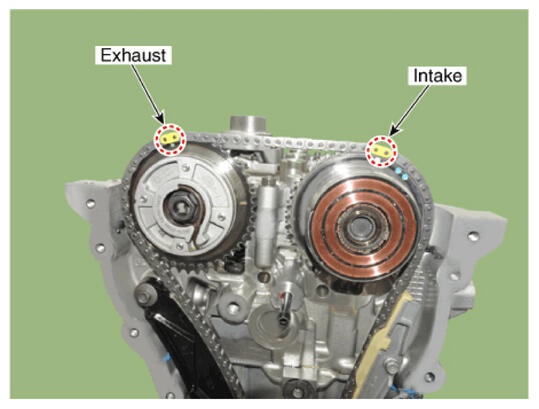

Make sure that the key (A) of crankshaft is aligned with the mounting surface of the lower crankcase. Ensure that the TDC mark on the front of the intake/exhaust CVVT sprockets match with the top of the cylinder head.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

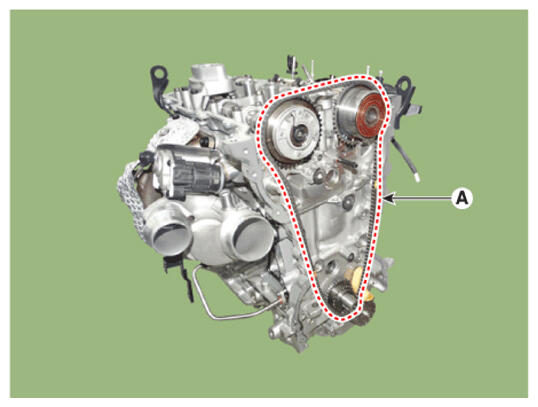

Install the timing chain (A).
Crankshaft sprocket → Timing chain guide → Intake CVVT sprocket → Exhaust CVVT sprocket.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.

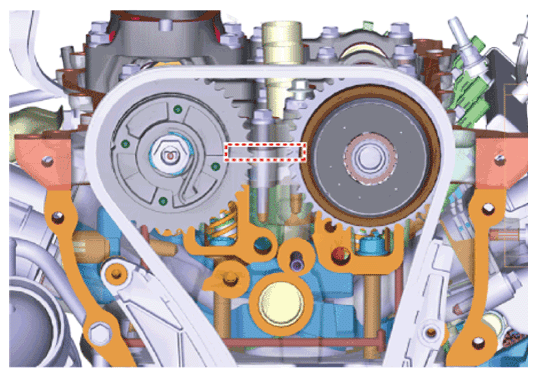

[Intake CVVT/Exhaust CVVT]

Courtesy of HYUNDAI MOTOR AMERICA

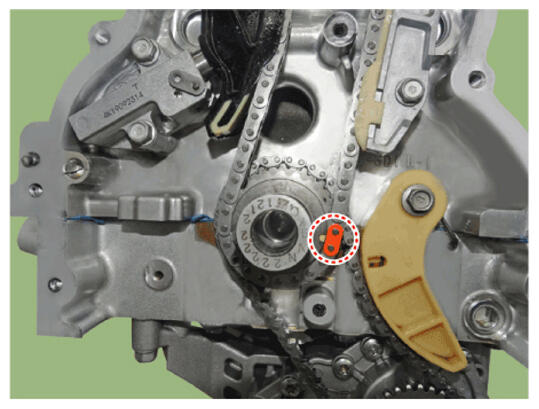

[Crankshaft]

Courtesy of HYUNDAI MOTOR AMERICA

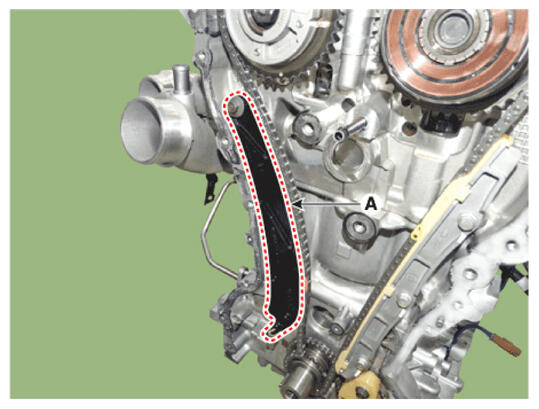

Install the timing chain guide (A).
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

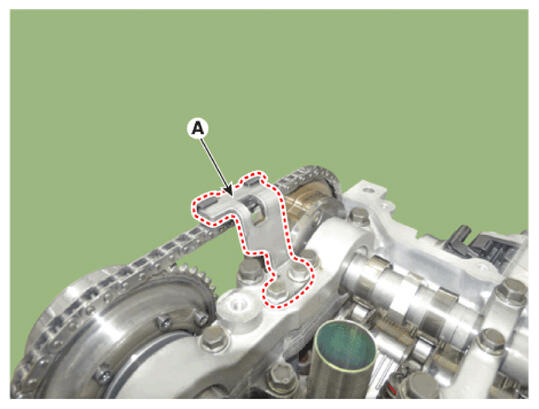

Install the timing chain cam to cam guide (A).
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

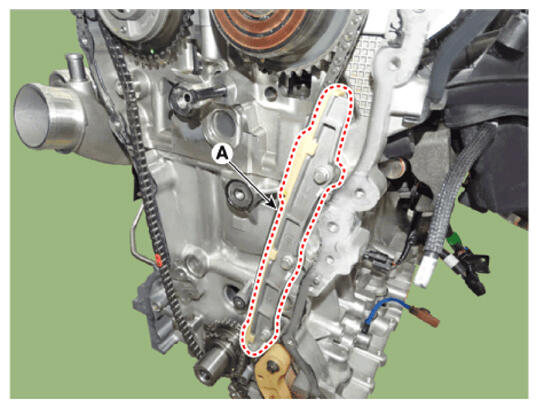

Install the timing chain tensioner arm (A).
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

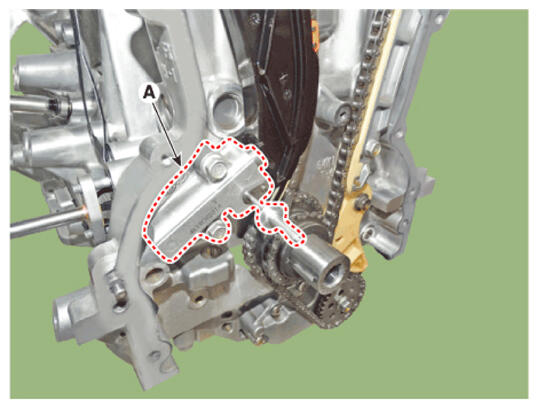

Install the timing chain auto tensioner (A) and pull out pins.
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Rotate the crankshaft 2 revolutions in clockwise direction. Ensure that the TDC mark on the front of the intake/exhaust CVVT sprockets match with the top of the cylinder head.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- If timing marks are not in line, turn the crankshaft clockwise one revolution (360°). (Do not rotate engine counterclockwise).
Install the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
