Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "Low Pressure Fuel Pump ")

  2. Disconnect the fuel sender connector (A) and fuel pump connector (B).

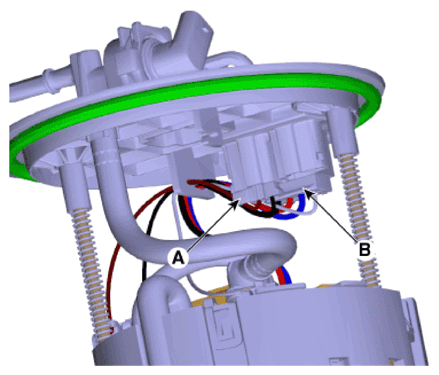

    G16769935Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the fuel sender (B) after releasing the fixing hooks (A).

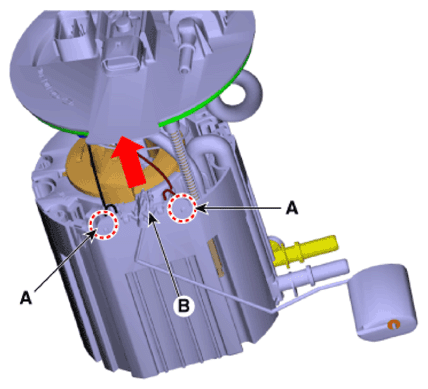

G16769936Courtesy of HYUNDAI MOTOR AMERICA

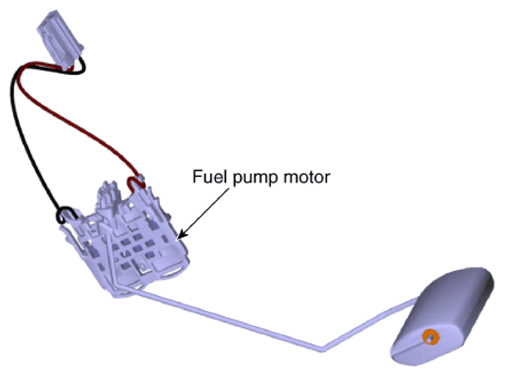

G16769937Courtesy of HYUNDAI MOTOR AMERICA
