Diagnostic Flowchart

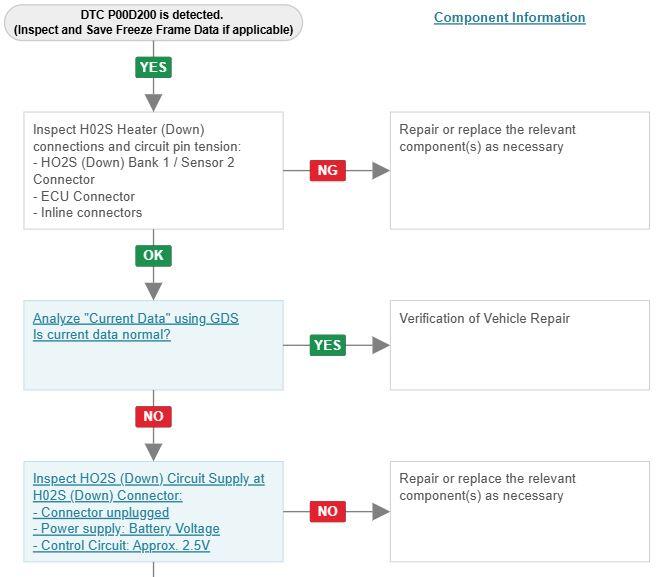

Fig 1: P00D2-00 (1 Of 2)
G16778653Courtesy of HYUNDAI MOTOR AMERICA

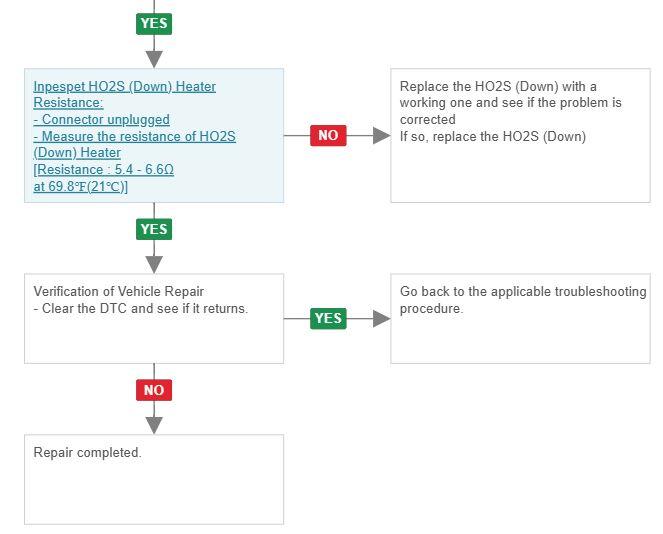

Fig 2: P00D2-00 (2 Of 2)
G00664337Courtesy of HYUNDAI MOTOR AMERICA
